SEMIKRON

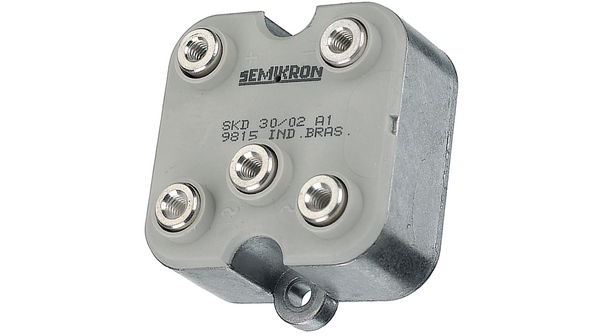

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| No. of Phases | :Three |
| Repetitive Reverse Voltage Vrrm Max | :1.2kV |
| Forward Current If(AV) | :30A |
| Forward Voltage VF Max | :2.2V |
| Bridge Rectifier Case Style | :G13 |
| No. of Pins | :5 |
| Diode Mounting Type | :Panel |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Body Height Max | :55mm |
| Diode Type | :Bridge Rectifier, Three Phase |
| External Depth | :45mm |
| External Length / Height | :24mm |
| External Width | :55mm |
| Forward Surge Current Ifsm Max | :370A |
| Operating Temperature Range | :-40°C to +150°C |
| Output Current Max | :30A |
| Weight (kg) | 0.12 |
| Tariff No. | 85411000 |
| rohs | RoHS Compliant Part |
