Semikron

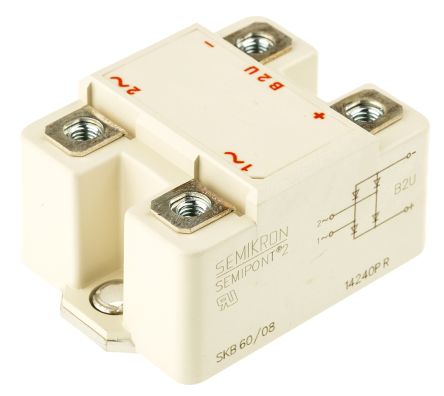

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Bridge Type | Single Phase |
| Configuration | Single |
| Dimensions | 65 x 48 x 34mm |
| Height | 34mm |
| Length | 65mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Screw |
| Package Type | G 17 |
| Peak Average Forward Current | 88A |
| Peak Forward Voltage | 1.6V |
| Peak Non-Repetitive Forward Surge Current | 1000A |
| Peak Reverse Current | 0.5mA |
| Peak Reverse Repetitive Voltage | 800V |
| Pin Count | 4 |
| Width | 48mm |
| V(RRM) | 800 V |
| I(D) | 60 A |
| 净重 | 0.16 千克 |
| 原产国 | 意大利 |
| Board Level Components | Y |
| 峰值正向电压 | 1.6V |
| 峰值反向电流 | 500µA |
| 最高工作温度 | +125 °C |
| 高度 | 34mm |
| 配置 | 单 |
| 安装类型 | 面板安装 |
| 最低工作温度 | -40°C |
| 峰值非重复正向浪涌电流 | 1kA |
| 电桥类型 | 单相 |
| 长度 | 65mm |
| 峰值平均正向电流 | 60A |
| 宽度 | 48mm |
| 封装类型 | SEMIPONT2 |
| 引脚数目 | 4 |
| 峰值反向重复电压 | 800V |
| 尺寸 | 65 x 48 x 34mm |
