SEMIKRON

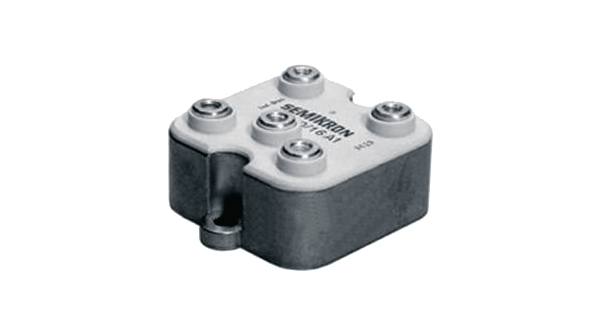

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| No. of Phases | :Single |
| Repetitive Reverse Voltage Vrrm Max | :800V |
| Forward Current If(AV) | :30A |
| Forward Voltage VF Max | :2.2V |
| Bridge Rectifier Case Style | :G12 |
| No. of Pins | :4 |
| Diode Mounting Type | :Panel |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Body Height Max | :24mm |
| Case Temperature Tc | :94°C |
| Diode Type | :Bridge Rectifier, Single Phase |
| External Depth | :45mm |
| External Length / Height | :24mm |
| External Width | :45mm |
| Flammability Rating | :UL |
| Forward Surge Current Ifsm Max | :370A |
| Operating Temperature Range | :-40°C to +150°C |
| Output Current Max | :30A |
| Voltage Rating V AC | :800V |
| Weight (kg) | 0.3 |
| Tariff No. | 85415000 |
| Case | SEMIPONT |
| Rated current | 30A |
| Mounting | screwed |
| Gross weight | 0.12 kg |
| Type of semiconductor component | bridge rectifier |
| Multiplicity | 1 |
| Off state voltage max | 800V |
| Collective package [pcs] | 12 |
| spg | 12 |
