Semikron

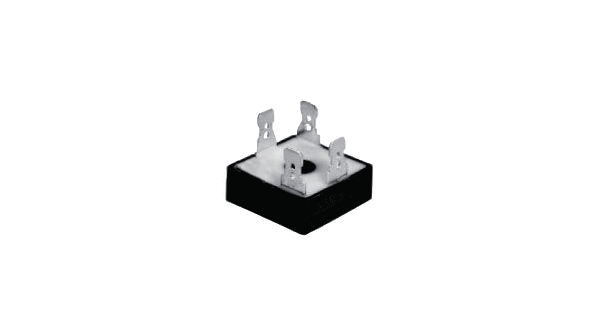

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Mounting | Screw |
| Peak Non-Repetitive Surge Current (Max) | 370 A |
| Phase Type | Single Phase |
| Operating Temp Range | -40C to 150C |
| Package Type | Case G-10b |
| Peak Rep Rev Volt | 400 V |
| Pin Count | 4 |
| Rev Curr | 300 mA |
| Number of Elements | 1 |
| Operating Temperature Classification | Automotive |
| Forward Voltage | 2.2 V |
| Avg. Forward Curr (Max) | 10 A |
| Rad Hardened | No |
| Case | G10b |
| Rated current | 17A |
| Multiplicity | 1 |
| Gross weight | 0.43 g |
| Type of semiconductor component | bridge rectifier |
| Off state voltage max | 400V |
| Collective package [pcs] | 1 |
| spg | 1 |
