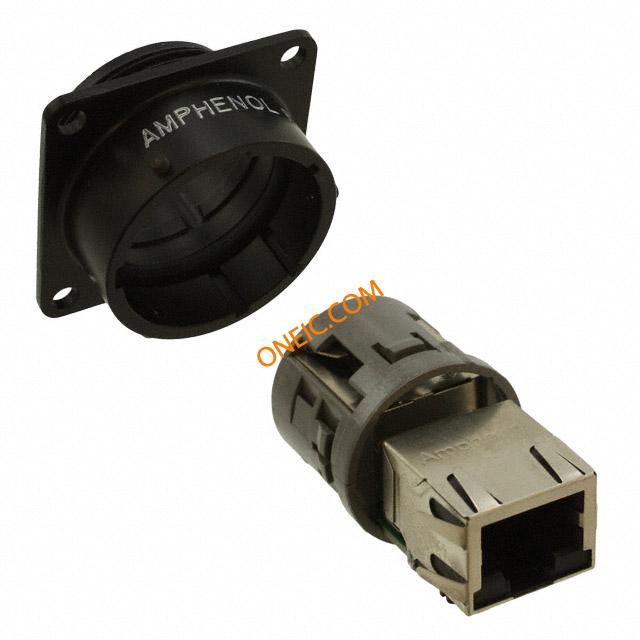

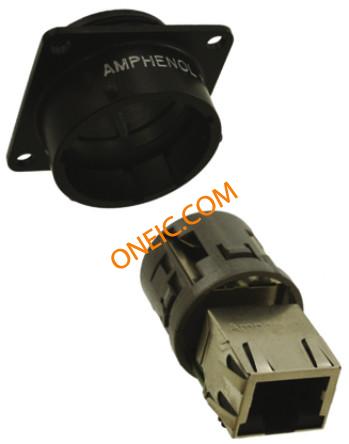

amphenol pcd
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Type | RJ-45 |
| Gender | RCP |
| Mounting | Panel Mount |
| Body Orientation | Straight |
| Standard Package | Bulk |
| Ratings | Cat5e |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Circular Bayonet Coupling |
| Mounting Type | Panel Mount, Square Flange |
| Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Shell Material, Finish | Metal |
| Operating Temperature | -40°C ~ 85°C |
| Shielding | Unshielded |
| rohs | Lead free / RoHS Compliant |
| Depth | 39.1mm |
| IP Rating | IP67 |
| LAN Category | Cat5e |
| Length | 33.3mm |
| Orientation | Straight |
| Socket Type | Square Flange |
| Width | 33.3mm |
| Mounting Angle | Straight |
| Product Category | Modular Connectors / Ethernet Connectors |
| USOC Codes | RJ45 |
| Operating Temperature Range | - 40 C to + 85 C |
| Color | Black |
| Performance Category | Cat 5e |
| Termination Style | Solder Terminal |
| Mounting Style | Flange |
| Number of Ports | 1 |
| Flammability Rating | UL 94 V-0 |
| Series | RJF |
| Part # Aliases | 03H9929 308-4605 |
| RoHS | RoHS Compliant |
| Operating Temp Range | -40C to 85C |
| Positions Loaded | 8 |
| Number of Contacts | 8 POS |
| Product Length (mm) | 39.1 mm |
| Product Depth (mm) | 33.3 mm |
| Product Height (mm) | 33.3 mm |
| Category Number | Cat 5e |
| Family | RJF |
| Connector Type | :Sealed Ethernet |
| No. of Contacts | :8 |
| Contact Termination | :Solder |
| Connector Mounting | :Panel |
| Contact Material | :- |
| Contact Plating | :- |
| Weight (kg) | 0.02636 |
| Tariff No. | 85369010 |
| Weight (g): | 25.60000 |
| Application | For robotics, industrial process control, CNC machines, special machines, motion control, data acquisition and transmission in harsh environments and tele-maintenances |
| Brand/Series | RJField Series |
| Diameter, Mounting Hole | 0.138 in. |
| Primary Type | Sealed |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
