Kingbright

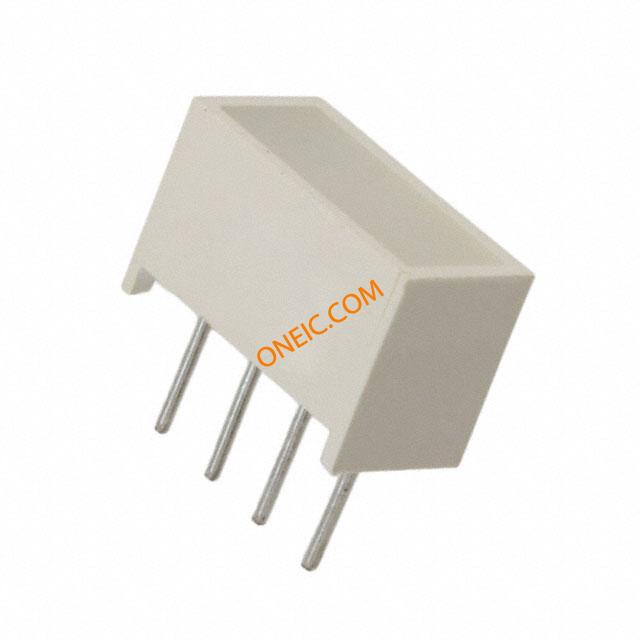

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Product Category | LED Bars and Arrays |
| RoHS | RoHS Compliant |
| Product | LED Light Bars |
| Illumination Color | Red |
| Luminous Intensity | 40 mcd |
| Forward Current | 20 mA |
| Forward Voltage | 2 V |

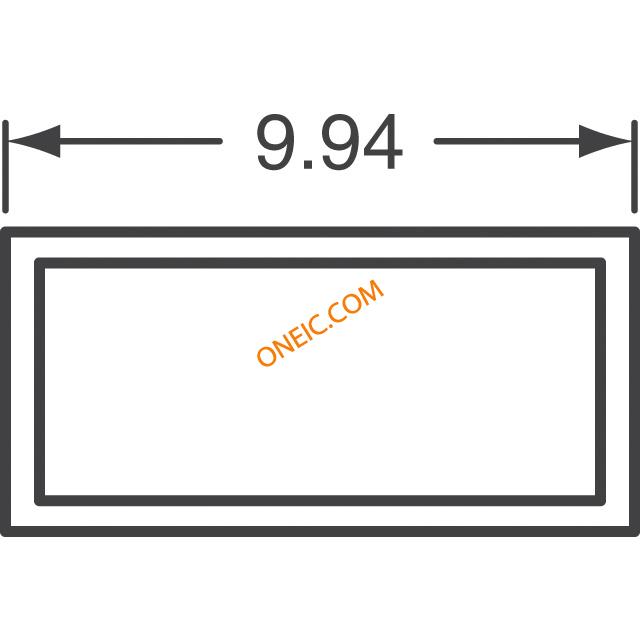

| Light Bar Length | 9.94 mm |
| Power Rating | 75 mW |
| Factory Pack Quantity | 100 |
| Industry Aliases | KB-2300EW |
| Subcategory | LED Light Bars, Arrays and Bar Graphs |
| Packaging | Tube |
| Lead Time | 56 Days |
| Mounting Type | Through Hole |
| Lens Style/Size | Rectangle, 8.89mm x 3.81mm |
| Voltage Rating | 2V |
| Color | Red (x 2) |
| Lens Type | Diffused, White |
| Current | 30mA |
| Millicandela Rating | 19mcd |
| Wavelength - Peak | 627nm |
| Standard Package | 100 |
| Configuration | Bar - Single, SIP |
| Other Names | 754-1180-5 |
| rohs | Lead free / RoHS Compliant |
| Color,Emitted | Red |
| Color,Lens | White |
| Current,Forward,Peak | 30mA |
| MountingType | Thru-Hole |
| Pinout | 4 |
| Segments | 2 |
| Voltage,Forward | 2VDC |
| Luminous Intensity (Min) | 12 mcd @20mA |
| SubCategory | Light Bar |
| Mounting | Thruhole |
| Material | GaAsP/GaP |
| Viewing Angle | N/A |
| MainCategory | Displays |
| Lens Color | White Diffused |
| Luminous Intensity (Typ) | 29 mcd @20mA |
| Wavelength Color | 625nm |
| Size | 8.89X3.81mm |
| 透镜样式/尺寸 | Rectangle, 8.89mm x 3.81mm |
| 配置 | Bar - Single, SIP |
| 波长 - 峰值 | 627nm |
| 额定电压 | 2V |
| 毫烛光等级 | 19mcd |
| 透镜类型 | Diffused, White |
| 装配类型 | Through Hole |
| 颜色 | Red (x 2) |
| 电流 | 30mA |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
