Panasonic

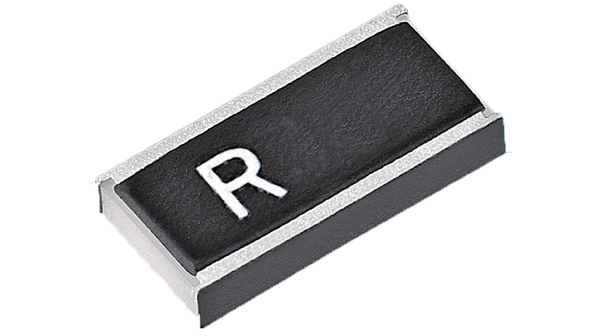

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 机箱样式 | Moulded |
| 深度 | 1.25mm |
| 外形尺寸 | 2 x 1.25 x 0.5mm |
| 身高 | 0.5mm |
| 长度 | 2mm |
| 最高工作温度 | +155°C |
| 最大温度系数 | +100ppm/°C |
| 最低工作温度 | -55°C |
| 最低温度系数 | -100ppm/°C |
| 封装/外壳 | 0805 |
| 额定功率 | 0.33W |
| 电阻 | 2.7Ω |
| 技术 | Thick Film |
| 温度系数 | ±100ppm/°C |
| 端接类型 | Flat Contact |
| 容差 | ±1% |
| 产品范围 | :PANASONIC - ERJ Series |
| 电阻公差 | :± 1% |
| Resistor Case Style | :0805 Wide |
| Resistor Element Material | :Thick Film |
| 额定电压 | :150V |
| 封装 | :Cut Tape |
| MSL | :- |
| 外部深度 | :1.25mm |
| External Length / Height | :0.5mm |
| 外宽 | :2mm |
| No. of Pins | :2 |
| Operating Temperature Max | :155°C |
| Operating Temperature Min | :-55°C |
| 工作温度范围 | :-55°C to +155°C |
| Overload Voltage | :200V |
| Reel Quantity | :5000 |
| Resistor Mounting | :SMD |
| 系列 | :ERJ |
| Weight (kg) | 0.000004 |
| Tariff No. | 85332100 |
