panasonic

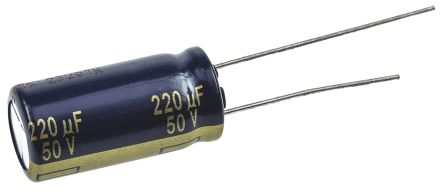

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Mounting | Through Hole |
| Capacitance Value | 220 uF |
| Voltage | 50 Vdc |
| Tolerance | 20 % |
| Ripple Current | 1030 mA |
| Lifetime | 3000 h |
| Product Diameter | 10 mm |
| Product Height | 20 mm |
| Lead Pitch For Radial | 5 mm |
| Operating Temperature | -55 to 105 °C |
| Termination Style | Radial |
| Standard Package | Bulk |
| Unit Pack | 200 |
| MOQ | 20000 |
| Product Range | :PANASONIC - FC Series |
| Capacitance | :220µF |
| Capacitance Tolerance | :± 20% |
| Voltage Rating | :50V |
| Diameter | :10mm |
| Height | :20mm |
| Capacitor Terminals | :Radial Leaded |
| Lead Spacing | :5mm |
| Life Time @ Temperature | :3000 hours @ 105°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :105°C |
| Packaging | :- |
| Weight (kg) | 0.003 |
| Tariff No. | 85322200 |
| Capacitors features | low impedance |
| Body dimensions | Ø10 x 20mm |
| Nominal life | 3000h |
| Terminal pitch | 5mm |
| Capacitor type | electrolytic |
| Gross weight | 2.47 g |
| Operating temperature | -55...105°C |
| Capacitor kind | low impedance |
| Operating voltage | 50V |
| Multiplicity | 1 |
| Impedance | 90mΩ |
| Collective package [pcs] | 200 |
| spg | 200 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
