panasonic

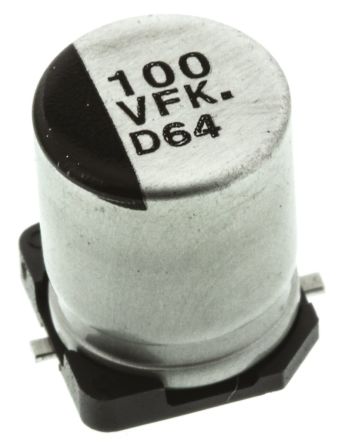

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Mounting | Surface Mount |
| Capacitance Value | 100 uF |
| Voltage | 35 Vdc |
| Tolerance | 20 % |
| Ripple Current | 600 mA |
| Lifetime | 2000 h |
| Product Diameter | 8 mm |
| Product Height | 10.2 mm |
| Operating Temperature | -55 to 105 °C |
| Construction | Cylindrical |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | Not Required mm |
| Capacitance | 100000000 pF |
| Tolerance (+ or -) | 20% |
| DCL | 35@2Min uA |
| Lead Spacing (nom) | Not Required mm |
| Mounting Style | Surface Mount |
| Packaging | Tape and Reel |
| Type | Electrolytic |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 10.2 mm |
| Seated Plane Height | Not Required mm |
| Size (mm) | 8 X 10.2 |
| Product Diameter (mm) | 8 mm |
| Product Range | :PANASONIC - FK Series |
| Capacitance Tolerance | :± 20% |
| Voltage Rating | :35V |
| Capacitor Case Style | :Radial Can - SMD |
| Diameter | :8mm |
| Height | :10.2mm |
| Ripple Current AC | :600mA |
| Life Time @ Temperature | :1000 hours @ 105°C |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :105°C |
| External Length / Height | :10.2mm |
| External Width | :8.3mm |
| Frequency Tolerance | :120Hz |
| Impedance | :0.16ohm |
| Impedance Frequency | :100kHz |
| Impedance Temperature | :20°C |
| Lead Cross-section Width | :0.9mm |
| Operating Lifetime | :1000h |
| Operating Temperature Range | :-40°C to +105°C |
| Power Factor | :0.12 |
| Power Factor Frequency | :120Hz |
| Power Factor Temperature | :20°C |
| Reel Quantity | :500 |
| Ripple Current Frequency | :100kHz |
| Ripple Current Temperature | :105°C |
| Series | :FKA |
| Tape Width | :16mm |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Tolerance Temperature | :20°C |
| Voltage Rating V DC | :35V |
| Weight (kg) | 0.05 |
| Tariff No. | 85322500 |
| Material,Element | AluminumElectrolytic |
| SpecialFeatures | HighTemperature |
| Temperature,Operating,Maximum | 105°C |
| Temperature,Operating,Minimum | –55°C |
| Termination | SMT |
| Voltage,Rating | 35VDC |
| rohs | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
