panasonic

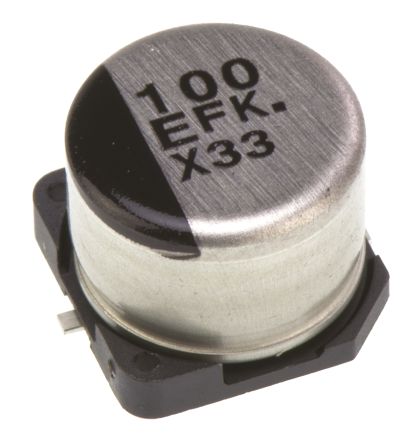

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Mounting | Surface Mount |
| Capacitance Value | 100 uF |
| Voltage | 25 Vdc |
| Tolerance | 20 % |
| Ripple Current | 300 mA |
| Lifetime | 2000 h |
| Product Diameter | 8 mm |
| Product Height | 6.2 mm |
| Operating Temperature | -55 to 105 °C |
| Construction | Cylindrical |
| Matchcode | HCRL100U25V |
| Style | SMD |
| Unit Pack | 1000 |
| Standard Leadtime | 16 weeks |
| Purpose of use | NA |
| Supp. case size | 8x6,2mm |
| Automotive | AECQ200-D |
| C(N) | 100µF |
| Permis.T(A) min | -55°C |
| Addi.spec. | 235SI |
| Leadfree Defin. | RoHS-conform |
| Lifetime @Tamax | 2000h |
| V(N) | 25V |
| Tolerance pos. | 20% |
| Rutronik size | 8x6mm |
| Z(100kHz/20°C) | 260mOhm |
| I(100kHz/105°C) | 300mA |
| Formed leads | NA |
| Con. design | NA |
| Permiss.Ta max | 105°C |
| MOQ | 1000 |
| Packaging | REEL |
| Cap. tol. neg | -20% |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | Not Required mm |
| Capacitance | 100000000 pF |
| Tolerance (+ or -) | 20% |
| Lead Spacing (nom) | Not Required mm |
| Mounting Style | Surface Mount |
| Type | Electrolytic |
| Seated Plane Height | Not Required mm |
| Size (mm) | 8 X 6.2 |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 6.2 mm |
| Product Diameter (mm) | 8 mm |
| Product Range | :PANASONIC - FK Series |
| Voltage Rating | :25V |
| Capacitor Case Style | :Radial Can - SMD |
| Diameter | :8mm |
| Height | :6.2mm |
| Ripple Current AC | :300mA |
| Life Time @ Temperature | :2000 hours @ 105°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :105°C |
| MSL | :- |
| Capacitance Tolerance | :± 20% |
| External Length / Height | :6.2mm |
| Impedance | :0.26ohm |
| Operating Lifetime | :2000h |
| Operating Temperature Range | :-55°C to +105°C |
| Power Factor | :0.14 |
| Power Factor Frequency | :120Hz |
| Ripple Current Frequency | :100kHz |
| Ripple Current Temperature | :105°C |
| Series | :FK |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Voltage Rating V DC | :25V |
| Weight (kg) | 0.0005 |
| Tariff No. | 85322500 |
| Mounting Type | :SMD |
| Reel Quantity | :1000 |
| Material,Element | AluminumElectrolytic |
| Termination | SMT |
| Voltage,Rating | 25VDC |
| rohs | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
