PANASONIC

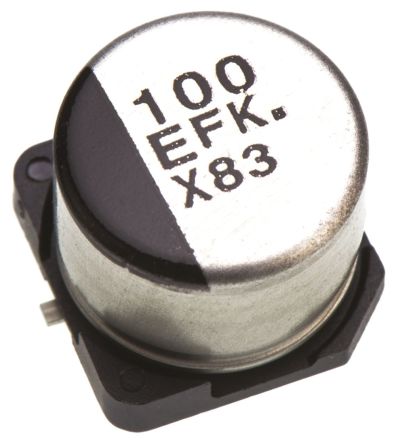

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Unit Pack | 1000 |
| MOQ | 10000 |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | Not Required mm |
| Construction | Cylindrical |
| Voltage | 25VDC |
| Capacitance | 100000000 pF |
| Tolerance (+ or -) | 20% |
| DCL | 25@2Min uA |
| Lead Spacing (nom) | Not Required mm |
| Mounting Style | Surface Mount |
| Packaging | Tape and Reel |
| Type | Electrolytic |
| Lifetime | 2000 hr |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 6.2 mm |
| Seated Plane Height | Not Required mm |
| Ripple Current | 300 mA |
| Size (mm) | 8 X 6.2 |
| Product Diameter (mm) | 8 mm |
| Product Range | :PANASONIC - FK Series |
| Capacitance Tolerance | :± 20% |
| Voltage Rating | :25V |
| Capacitor Case Style | :Radial Can - SMD |
| Diameter | :8mm |
| Height | :6.2mm |
| Ripple Current AC | :300mA |
| Life Time @ Temperature | :1000 hours @ 105°C |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :105°C |
| MSL | :- |
| External Length / Height | :6.2mm |
| External Width | :8.3mm |
| Frequency Tolerance | :120Hz |
| Impedance | :0.26ohm |
| Impedance Frequency | :100kHz |
| Impedance Temperature | :20°C |
| Lead Cross-section Width | :0.65mm |
| Operating Lifetime | :1000h |
| Operating Temperature Range | :-40°C to +105°C |
| Power Factor | :0.14 |
| Power Factor Frequency | :120Hz |
| Power Factor Temperature | :20°C |
| Reel Quantity | :1000 |
| Ripple Current Frequency | :100kHz |
| Ripple Current Temperature | :105°C |
| Series | :FKA |
| Tape Width | :16mm |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Tolerance Temperature | :20°C |
| Voltage Rating V DC | :25V |
| Weight (kg) | 0.04 |
| Tariff No. | 85322500 |
| Mounting Type | :SMD |
| Material,Element | AluminumElectrolytic |
| SpecialFeatures | HighTemperature |
| Temperature,Operating,Maximum | 105°C |
| Temperature,Operating,Minimum | –55°C |
| Termination | SMT |
| Tolerance | ±20% |
| Voltage,Rating | 25VDC |
| rohs | RoHS Compliant Part |
| Case | E |
| Body dimensions | Ø8 x 6.2mm |
| Mounting | SMD |
| Capacitor type | electrolytic |
| Gross weight | 0.7 g |
| Operating temperature | -55...105°C |
| Capacitor kind | low impedance |
| Service life | 2000h |
| Operating voltage | 25V |
| Multiplicity | 1 |
| Collective package [pcs] | 1000 |
| spg | 1000 |
