panasonic

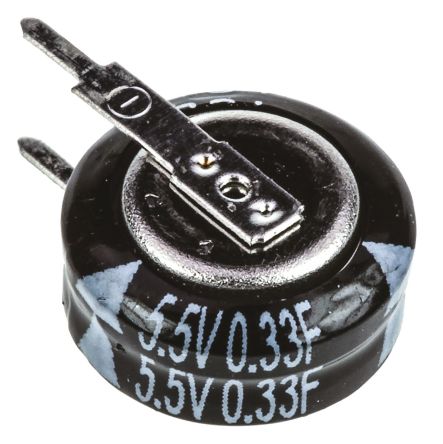

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Package/Case | 10.5(Max) X 5.5(Max) X 11.5(Max) |
| Mounting | Through Hole |
| Capacitance Value | 0.33 F |
| Voltage | 5.5 Vdc |
| Product Depth | 5.5(Max) mm |
| Product Diameter | 10.5(Max) mm |
| Lead Pitch For Radial | 5 mm |
| Operating Temperature | -25 to 70 °C |
| Construction | Stacked Coin |
| Termination Style | Radial |
| Tolerance | -20 to 80 % |
| Standard Package | Bulk |
| Matchcode | SUPC0,33F5,5V5,0 |
| Style | COIN |
| ESR(AC) | 75Ohm |
| Diameter | 10.5mm |
| Unit Pack | 200 |
| Standard Leadtime | 20 weeks |
| MOQ | 200 |
| C(N) | 0.33F |
| T(A)min | -25°C |
| Number of cells | 1S |
| Stored E/cell | 0.0014Wh |
| Leadfree Defin. | RoHS-conform |
| Length | 5.5mm |
| T(A)max | 70°C |
| Pitch | 5mm |
| Automotive | NO |
| Stored energy | 0.0014Wh |
| V(N) | 5.5V |
| ACN content | NONElitre |
| Capacitance | 0.33F |
| Dimensions | 10.5 Dia. x 11.5mm |
| Height | 11.5mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 5mm |
| Lifetime | 1000h |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Mounting Type | Through Hole |
| Tolerance Minus | -20% |
| Tolerance Plus | +80% |
| rohs | Compliant |
| Operating Temp Range | -25C to 70C |
| Rad Hardened | No |
| Tolerance (+ or -) | -20% to 80% |
| Lead Spacing (nom) | 5 mm |
| Mounting Style | Through Hole |
| Packaging | Bulk |
| Package / Case | Not Required |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | 5.5 mm |
| Product Height (mm) | 11.5 mm |
| Product Diameter (mm) | 10.5 mm |
| Capacitance Tolerance | :+80%, -20% |
| Voltage Rating | :5.5V |
| Capacitor Case Style | :Coin |
| Capacitor Terminals | :Radial Leaded |
| Lead Spacing | :5mm |
| Operating Temperature Min | :-25°C |
| Operating Temperature Max | :70°C |
| Body Diameter | :10.5mm |
| Capacitor Mounting | :Through Hole |
| External Length / Height | :11.5mm |
| Lead Cross-section Width | :0.8mm |
| Lead Length | :3mm |
| No. of Pins | :2 |
| Operating Lifetime | :1000h |
| Operating Temperature Range | :-25°C to +70°C |
| Series | :SD |
| Terminal Type | :PCB Pins |
| Tolerance + | :80% |
| Tolerance - | :20% |
| Voltage Rating V DC | :5.5V |
| Weight (kg) | 0.01 |
| Tariff No. | 85322900 |
| Body dimensions | Ø11.5 x 5.5mm |
| Gross weight | 1.09 g |
| Capacitor type | electrolytic |
| Capacitor kind | backup capacitor, supercapacitor |
| Operating voltage | 5.5V |
| Multiplicity | 1 |
| Terminal pitch | 5mm |
| Collective package [pcs] | 200 |
| spg | 200 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
