panasonic

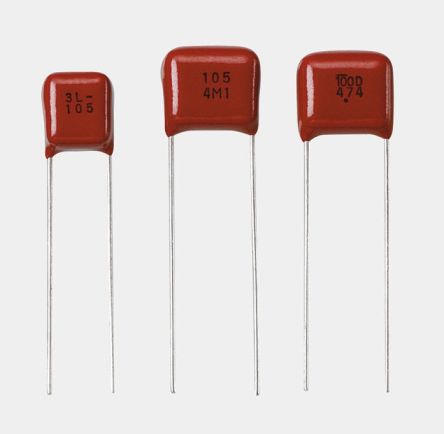

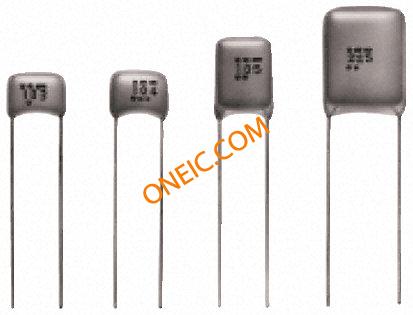

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Package/Case | 7.3(Max) X 5.2(Max) X 7(Max) |
| Mounting | Through Hole |
| Capacitance Value | 0.33 uF |
| Voltage | 50 Vdc |
| Tolerance | 5 % |
| Dielectric | PET |
| Lead Pitch For Radial | 5 mm |
| Type | Radial |
| Operating Temperature | -40 to 105 °C |
| Product Length | 7.3(Max) mm |
| Product Height | 7(Max) mm |
| Product Depth | 5.2(Max) mm |
| Standard Package | Bulk |
| Unit Pack | 500 |
| MOQ | 4000 |
| Capacitance | 330nF |
| Depth | 5.2mm |
| Dimensions | 5.2 x 7 x 7.3mm |
| Height | 7mm |
| Lead Diameter | 0.5mm |
| Lead Pitch | 5mm |
| Length | 7.3mm |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
| Mounting Type | Through Hole |
| Tolerance Minus | -5% |
| Tolerance Plus | +5% |
| rohs | Compliant |
| Product Range | :PANASONIC - ECQV Series |
| Capacitance Tolerance | :± 5% |
| Capacitor Dielectric Type | :Polyester (PET) |
| Voltage Rating | :50V |
| Life Time @ Temperature | :- |
| Capacitor Case Style | :- |
| Capacitor Terminals | :Radial Leaded |
| Lead Spacing | :5mm |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :105°C |
| Packaging | :Each |
| Capacitor Mounting | :Through Hole |
| External Depth | :5.2mm |
| External Length / Height | :7mm |
| External Width | :7.3mm |
| Lead Length | :20mm |
| No. of Pins | :2 |
| Operating Temperature Range | :-40°C to +105°C |
| Weight (kg) | 0.01 |
| Tariff No. | 85322500 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
