Panasonic

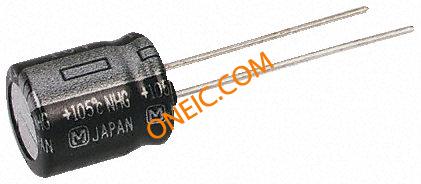

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Capacitance | 3.3µF |
| Construction | Radial |
| Diameter | 6.3mm |
| Dimensions | 6.3 Dia. x 11.2mm |
| Height | 11.2mm |
| Lead Diameter | 0.5mm |
| Lead Pitch | 2.5mm |
| Lifetime | 2000h |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -25°C |
| Mounting Type | Through Hole |
| Ripple Current | 36mA |
| Tolerance | ±20% |
| Tolerance Minus | -20% |
| Tolerance Plus | +20% |
| Voltage | 160 V dc |
| Product Range | :PANASONIC - NHG Series |
| Capacitance Tolerance | :± 20% |
| Voltage Rating | :160V |
| Capacitor Terminals | :Radial Leaded |
| Lead Spacing | :2.5mm |
| Life Time @ Temperature | :2000 hours @ 105°C |
| Operating Temperature Min | :-25°C |
| Operating Temperature Max | :105°C |
| No. of Pins | :2 |
| Operating Lifetime | :2000h |
| Operating Temperature Range | :-25°C to +105°C |
| Ripple Current AC | :36mA |
| Series | :NHG |
| Weight (kg) | 0.001 |
| Tariff No. | 85322200 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
