tdk epcos

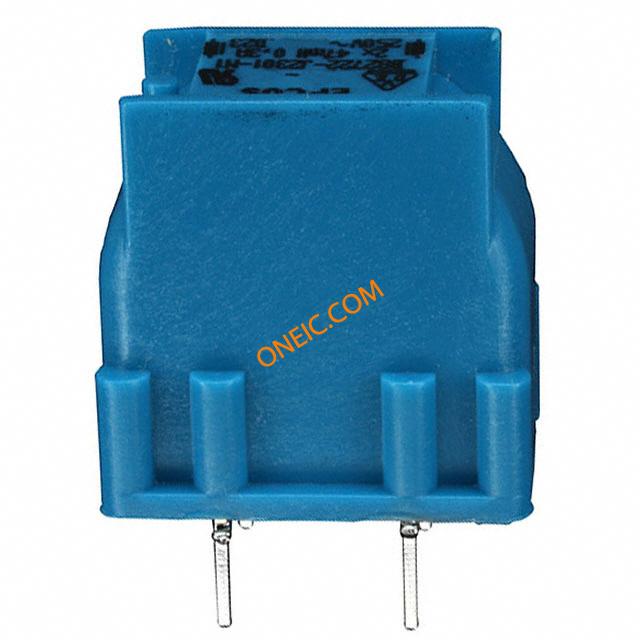

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Type | Power Line Choke |
| Inductance | 47 mH |
| Tolerance | 30 % |
| Product Length | 23.3 mm |
| Product Depth | 16.1 mm |
| Maximum DC Current | 300 mA |
| Lead Style | Pin |
| Core Material | Ferrite |
| Product Height | 25.4 mm |
| Maximum DC Resistance | 2.5(Typ) Ohm |
| Standard Package | Trays |
| EU RoHS | Compliant |
| Current | 300mA |
| Filter Type | Power Line |
| DC Resistance (DCR) | 2.5 Ohm |
| Mounting Type | Through Hole |
| Height (Max) | 1.000" (25.40mm) |
| Packaging | Tray |
| Size / Dimension | 0.917" L x 0.634" W (23.30mm x 16.10mm) |
| Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 |
| Package/Case | Vertical, 4 PC Pin |
| rohs | Lead free / RoHS Compliant |
| Product | Inductors |
| Product Category | Fixed Inductors |
| Dimensions | 16.1 mm W x 23.3 mm L x 25.4 mm H |
| Factory Pack Quantity | 540 |
| Termination Style | Radial |
| Case Length | 23.3 mm |
| Case Height | 25.4 mm |
| Case Width | 16.1 mm |
| Part # Aliases | B82722J2301N001 |
| RoHS | RoHS Compliant |
| Package / Case | Vertical, 4 PC Pin |
| 电感 | 47mH |
| 线路数 | 2 |
| 直流电阻 (DCR) | 2.5 Ohm |
| 操作温度 | -40°C ~ 125°C |
| 高度（最大值） | 1.000" (25.40mm) |
| 大小/尺寸 | 0.917" L x 0.634" W (23.30mm x 16.10mm) |
| 滤波器类型 | Power Line |
| 电流 | 300mA |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
