tdk epcos

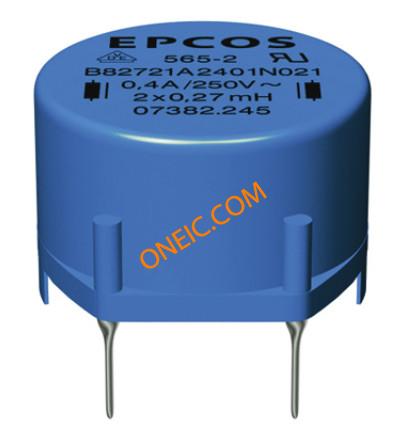

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Type | Power Line Choke |
| Inductance | 27 mH |
| Tolerance | 30 % |
| Product Length | 17.9 mm |
| Product Depth | 17.3 mm |
| Maximum DC Current | 400 mA |
| Lead Style | Pin |
| Core Material | Ferrite |
| Product Height | 12.6 mm |
| Maximum DC Resistance | 1.7(Typ) Ohm |
| Standard Package | Trays |
| Current | 400mA |
| Filter Type | Power Line |
| DC Resistance (DCR) | 1.7 Ohm |
| Mounting Type | Through Hole |
| Height (Max) | 0.496" (12.60mm) |
| Packaging | Tray |
| Size / Dimension | 0.705" L x 0.681" W (17.90mm x 17.30mm) |
| Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 |
| Package/Case | Horizontal, 4 PC Pin |
| rohs | Lead free / RoHS Compliant |
| Depth | 17.3mm |
| Dimensions | 17.9 x 17.3 x 12.6mm |
| Height | 12.6mm |
| Lead Pitch | 15mm |
| Length | 17.9mm |
| Factory Pack Quantity | 600 |
| Product | Chokes |
| Operating Temperature Range | - 40 C to + 125 C |
| Termination Style | Radial |
| Case Length | 17.9 mm |
| Case Height | 12.6 mm |
| Case Width | 17.3 mm |
| Part # Aliases | B82721A2401N021 |
| RoHS | RoHS Compliant |
| Lead Spacing | 15 mm |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Tolerance (+ or -) | 30% |
| Impedance | Not Required ohm |
| Test Frequency | 0.01 MHz |
| Military Standard | Not Required |
| Product Length (mm) | 17.9 mm |
| Product Depth (mm) | 17.3 mm |
| Product Height (mm) | 12.6 mm |
| DC Current | 400 mA |
| DC Resistance | 1.7 ohm |
| Product Diameter (mm) | Not Required mm |
| 电感 | 27mH |
| 线路数 | 2 |
| 直流电阻 (DCR) | 1.7 Ohm |
| 操作温度 | -40°C ~ 125°C |
| 高度（最大值） | 0.496" (12.60mm) |
| 大小/尺寸 | 0.705" L x 0.681" W (17.90mm x 17.30mm) |
| 滤波器类型 | Power Line |
| 电流 | 400mA |
