Vishay / Spectrol

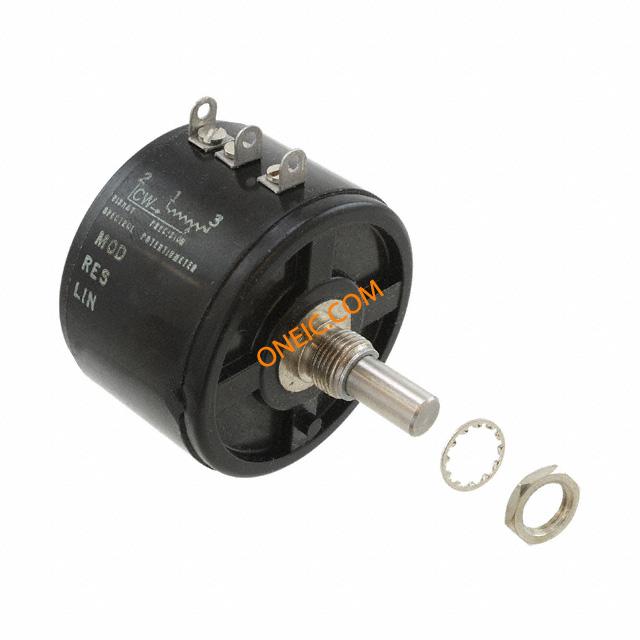

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Resistance (Ohms) | 10k |
| Actuator Length | 0.812" (20.62mm) |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Number of Turns | 3 |
| Temperature Coefficient | ±20ppm/°C |
| Packaging | Bulk |
| Resistive Material | Wirewound |
| Power (Watts) | 3W |
| Actuator Diameter | 0.250" (6.35mm) |
| Adjustment Type | Side Adjustment |
| Actuator Type | Round Shaft |
| Standard Package | 10 |
| Rotation | 1080° |
| Tolerance | ±3% |
| Size - Body | Round - 1.812" Dia x 1.218" L (46.02mm x 30.94mm) |
| Factory Pack Quantity | 5 |
| Product | Precision Potentiometer |
| Product Category | Precision Potentiometers |
| Operating Temperature Range | - 55 C to + 125 C |
| Element Type | Wirewound |
| Taper | Linear |
| Resistance | 10 kOhms |
| Mounting Style | Panel |
| Shaft Diameter | 0.2497 in |
| Shaft Length | 0.812 in |
| Series | 830 |
| Power Rating | 3 W |
| RoHS | In Transition |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
