te connectivity / amp

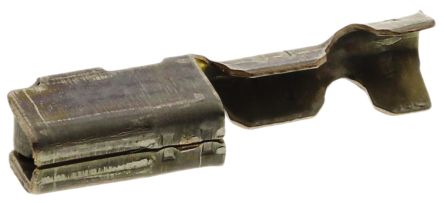

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Connector Type | Connector Headers and PCB Receptacles |
| Contact Type | Signal |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Over Nickel |
| Gender | SKT |
| Termination Method | Crimp |
| Standard Package | Bulk |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| Packaging Method | Loose Piece |
| Wire Termination Type | Crimp |
| Dual Wipe Contact | Yes |
| Wire Insulation Diameter (mm in) | 1.65 [0.065] |
| Wire Size (mm² AWG) | 0.12-0.4² [26-22] |
| Used For | CST-100 Housings |
| Contact Mating Area Plating Material | Gold (30) over Nickel |
| Product Type | CST-100 Contacts |
| RoHSELV Compliance History | Always was RoHS compliant |
| Contact Shape | Box |
| Wire Gauge | 22-26 AWG |
| Contact Finish | Gold |
| Packaging | Bulk |
| Pin or Socket | Socket |
| Contact Finish Thickness | 30µin (0.76µm) |
| Contact Termination | Crimp |
| rohs | Lead free / RoHS Compliant |
| Series | CST-100 |
| Factory Pack Quantity | 10000 |
| Termination Style | Crimp |
| Product Category | Headers & Wire Housings |
| Voltage Rating | 250 V |
| Contact Gender | Socket (Female) |
| RoHS | RoHS Compliant |
| Housing Material | Not Required |
| Mounting Style | Cable |
| Body Orientation | Straight |
| Type | Contact |
| Number of Contact Rows | Not Required |
| Number of Contacts | 1 POS |
| Housing Color | Not Required |
| Product Length (mm) | 11.18 mm |
| Product Depth (mm) | 2.67 mm |
| Pitch (mm) | Not Required mm |
| For Use With | :CST-100 Housings |
| Wire Size AWG Min | :26AWG |
| Wire Size AWG Max | :22AWG |
| Contact Size | :22 |
| Wire Size | :22AWG |
| Wire Size (AWG) | :26AWG to 22AWG |
| Weight (kg) | 0.12 |
| Tariff No. | 85369010 |
| Brand/Series | CST-100 |
| ContactCenterlineSpacing | 0.100" |
| ContactMatingAreaPlating | Gold |
| ForUseWith | CST-100Housings |
| Material,Contact | Nickel |
| NumberofPositions | 1 |
| WireSize | 26-22AWG |
| WireTerminationType | Crimp |
