AVX Corporation
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Number of Positions | 6 |
| Features | Board Guide |
| Mounting Type | Surface Mount, Right Angle |
| Card Type | Combo - microSD™, SIM |
| Mounting Feature | Normal, Standard - Top |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Packaging | Tape & Reel (TR) |
| Height Above Board | 0.106" (2.70mm) |
| Insertion, Removal Method | Multiple |
| Standard Package | 700 |
| Other Names | 478-5346-2 |
| rohs | Lead free / RoHS Compliant |
| Product | Card Connectors |
| Product Category | Memory Card Connectors |
| Orientation | Horizontal |
| Series | 9162 |
| Number of Rows | 2 |
| Termination Style | SMD |
| Height | 2.7 mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Length | 17.15 mm |
| Flammability Rating | UL 94 V-0 |
| Pitch | 1.27 mm |
| Insertion - Extraction Style | Push-Push |
| Number of Contacts | 6 |
| RoHS | RoHS Compliant |
| Rad Hardened | No |
| Contact Plating | Gold Over Nickel |
| Gender | SKT |
| Mounting Style | Surface Mount |
| Body Orientation | Right Angle |
| Type | Micro SD Card/SIM |
| Number of Contact Rows | 1 |

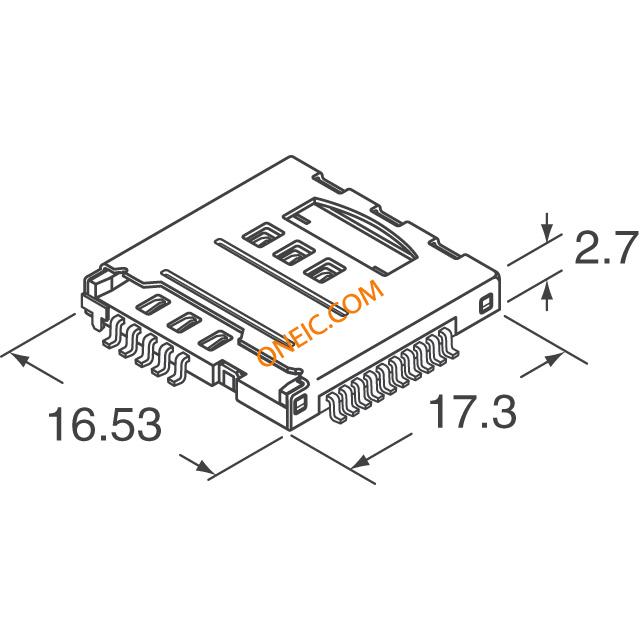

| Product Length (mm) | 16.53 mm |
| Product Depth (mm) | 17.3 mm |
| Product Height (mm) | 2.7 mm |
| Termination Method | Solder |
| Contact Pitch (mm) | 1.27 mm |
| Automotive | NO |
| Leadfree Defin | RoHS-conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
