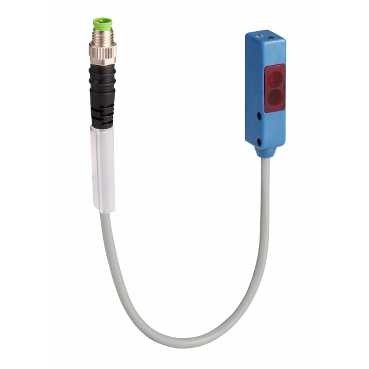

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| product certifications | CECULus |
| lens material | PMMA |
| product weight | 0.061 kg |
| supply circuit type | DC |
| wiring technique | 4-wire |
| sensor name | XUY |
| switching capacity in mA | 100 mA (overload and short-circuit protection) |
| electronic sensor type | Photo-electric sensor |
| switching frequency | 500 Hz |
| series name | Application |
| output type | Solid state |
| enclosure material | ABS |
| [Sd] sensing range | > 0.3...1 m |
| range of product | OsiSense XU |
| ambient air temperature for operation | 0...50 °C |
| [Sn] nominal sensing distance | 1 m polarised reflex4 m thru beam0.08 m diffuse with background suppression0.25 m diffuse with adjustable sensitivity |
| supply voltage limits | 10...30 V DC |
| material | Plastic |
| emission | Red LED, pulsed |
| IP degree of protection | IP65 conforming to IEC 60529IP67 conforming to IEC 60529 |
| product specific application | Conveyor system and access control series |
| detection system | Polarised reflex |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| pulse frequency | 6 kHz |
| sensor design | Miniature |
| delay response | 1 ms |
| current consumption | < 25 mA (no-load) |
| type of output signal | Discrete |
| cover material | PUR |
| electrical connection | 1 male connector M8, 4 pins |
| voltage drop | < 2 V at 100 mA (closed state)<= 1 V at 10 mA (closed state) |
| ambient air temperature for storage | -20...80 °C |
| discrete output function | 1 NO or 1 NC programmable |
| discrete output type | PNP |
