Weidmuller

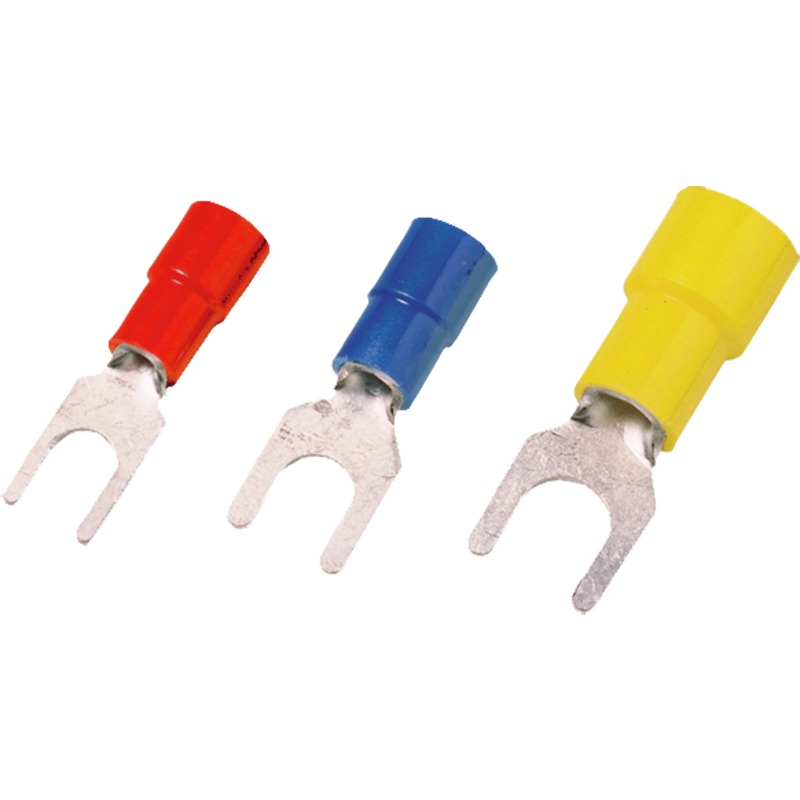

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 梭哈/标签大小 | M4 Stud |
| 长度 - 终端 | 0.445" (11.30mm) |
| 安装类型 | Free Hanging (In-Line) |
| 宽度 - 外边 | 0.283" (7.20mm) |
| 封装 | Bulk |
| 材料 - 绝缘体 | Poly-Vinyl Chloride (PVC) |
| 开口内舌 | 0.169" (4.30mm) |
| 颜色 | Red |
| 标准包装 | 1 |
| 绝缘 | Insulated |
| 端子 | Crimp |
| 终端类型 | Standard |
| Conductor cross-section, min | 0.5 mm² |
| ETIM 3*0 | EC001052 |
| Net weight | 0.75 g |
| 宽度 | 5.8 mm |
| 版本 | cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,Red |
| GTIN (EAN) | 4032248410132 |
| 类型 | LIS 1,5M4 V |
| Length (inches) | 0.89 inch |
| Plastic collar length (b) | 11.3 mm |
| eClass 9*0 | 27-40-02-12 |
| Dimension (bolt) | M 4 |
| UNSPSC | 30-21-18-01 |
| Inside diameter (d1) | 4.3 mm |
| eClass 5*1 | 27-40-02-04 |
| eClass 8*1 | 27-40-02-12 |
| ETIM 4*0 | EC001052 |
| Conductor cross-section, max | 1.5 mm² |
| ETIM 5*0 | EC001059 |
| Connection density (S1) | 0.75 mm |
| eClass 7*1 | 27-40-02-04 |
| 长度 | 22.6 mm |
| Plastic collar diameter (D) | 4 mm |
| 尺寸 | M 4 |
| Width (inches) | 0.228 inch |
| Outside diameter (d) | 7.2 mm |
| ETIM 6*0 | EC001059 |
| eClass 6*2 | 27-40-02-04 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
