weidmuller

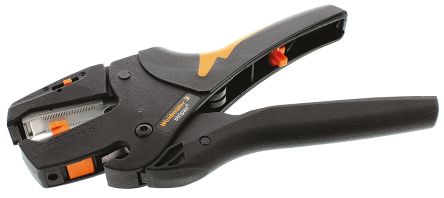

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Stripping Tool |
| 标准包装 | Bulk |
| 电缆类型 | PVC Cable, 10~28 AWG |
| 产品特点 | Fixed Strip Length |
| RoHS指令 | Lead free / RoHS Compliant |
| Stripped insulation material | PVC, rubber, teflon |
| Tool type | stripping tool |
| 重量 | 175g |
| Multiplicity | 1 |
| Gross weight | 0.23 kg |
| 长度 | 190mm |
| Wire cross section | 0.08...10mm2 |
| Stripping wire type | round, flat |
| Strip length | max. 25mm |
| Tool material | plastic |
| Conductor cross-section, min | 0.08 mm² |
| ETIM 3*0 | EC000163 |
| Net weight | 222 g |
| Conductor cross-section, min* AWG | AWG 28 |
| STEP | 9005000000_26125_Stripax_6_STP.stp |
| 版本 | Stripping and cutting tool, Flexible and solid conductors with PVC insulation, 10mm², 25mm |
| GTIN (EAN) | 4008190072506 |
| Length (inches) | 7.48 inch |
| eClass 7*1 | 21-04-37-06 |
| eClass 5*1 | 21-04-03-01 |
| UNSPSC | 23-17-16-04 |
| Conductor cross-section, max* AWG | AWG 7 |
| eClass 8*1 | 21-04-37-06 |
| ETIM 4*0 | EC000163 |
| Conductor cross-section, max | 10 mm² |
| ETIM 5*0 | EC000163 |
| eClass 9*0 | 21-04-38-90 |
| eClass 9*1 | 21-04-37-06 |
| Conductor cross-section (cutting capacity) | 6 mm² |
| 电缆类型 | Flexible and solid conductors with PVC insulation |
| Stripping range, min | 0.08 mm² |
| Stripping length, max | 25 mm |
| ETIM 6*0 | EC002109 |
| eClass 6*2 | 21-04-38-90 |
| ROHS | Conform |
| 类型 | Single Level Stripper, Adjustable |
| 特性 | Fixed Strip Length |
| 电缆类型 | PVC Cable, 10~28 AWG |
| 剥线范围 | 0.08 → 10mm² |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
