weidmuller

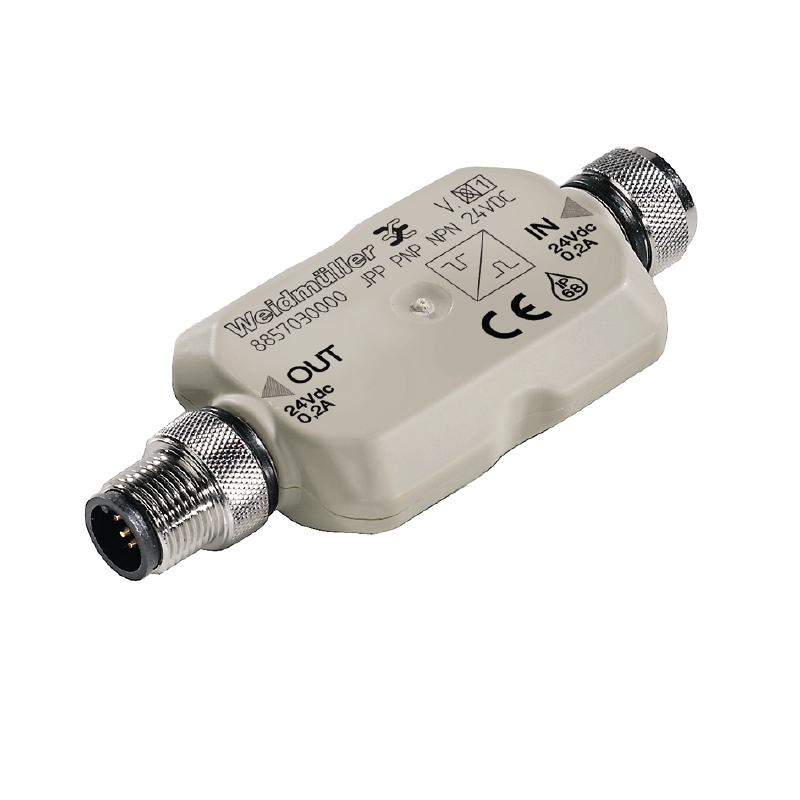

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 继电器类型 | Relay |
| 安装类型 | Socketable |
| 负载电流 | 400mA |
| 电压 - 负载 | 18 ~ 30 V |
| 端接类型 | Plug In |
| 输出类型 | DC |
| 封装 | Bulk |
| 电路 | SPST-NO (1 Form A) |
| 标准包装 | 1 |
| 电压 - 电压 | 24VDC |
| 封装/外壳 | Module |
| Rated switching current | 400 mA |
| ETIM 3*0 | EC000926 |
| Pollution severity | 2 |
| Engineering data | EPLAN |
| Net weight | 46 g |
| 宽度 | 36 mm |
| 版本 | JACKPAC, Level converter, Rated control voltage: 18...24...30 V DC , Rated switching voltage: 18...30 V DC, Continuous current: 0.4 A, M12 plug/socket, A-coded |
| GTIN (EAN) | 4032248573332 |
| 传感器 | 2-/ 3-Conductor Sensor PNP-Type |
| Length (inches) | 3.268 inch |
| Rated control voltage | 18...24...30 V DC |
| eClass 7*1 | 27-27-09-90 |
| Height (inches) | 0.567 inch |
| Operating temperature | 0 °C...60 °C |
| eClass 8*1 | 27-27-09-90 |
| ETIM 4*0 | EC000926 |
| ETIM 5*0 | EC000926 |
| Continuous current | 0.4 A |
| Rated switching voltage | 18...30 V DC |
| eClass 9*0 | 27-27-09-90 |
| Certificate no* (cULus) | E141197 |
| eClass 6*2 | 27-27-09-90 |
| Input current for sensor | < 200 mA |
| 标准 | DIN EN 50178, UL508 |
| 长度 | 83 mm |
| Storage temperature | -20 °C...85 °C |
| Protection degree | IP20 |
| 额定电压 | 32 V |
| 类型 | JPP PNP NPN 24VDC |
| Width (inches) | 1.417 inch |
| Wire connection method | M12 plug/socket, A-coded |
| ETIM 6*0 | EC000926 |
| 身高 | 14.4 mm |
| Surge voltage category | I |
| Descriptive text accessories | Retaining clipJP CLIP M: 8778490000 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
