weidmuller

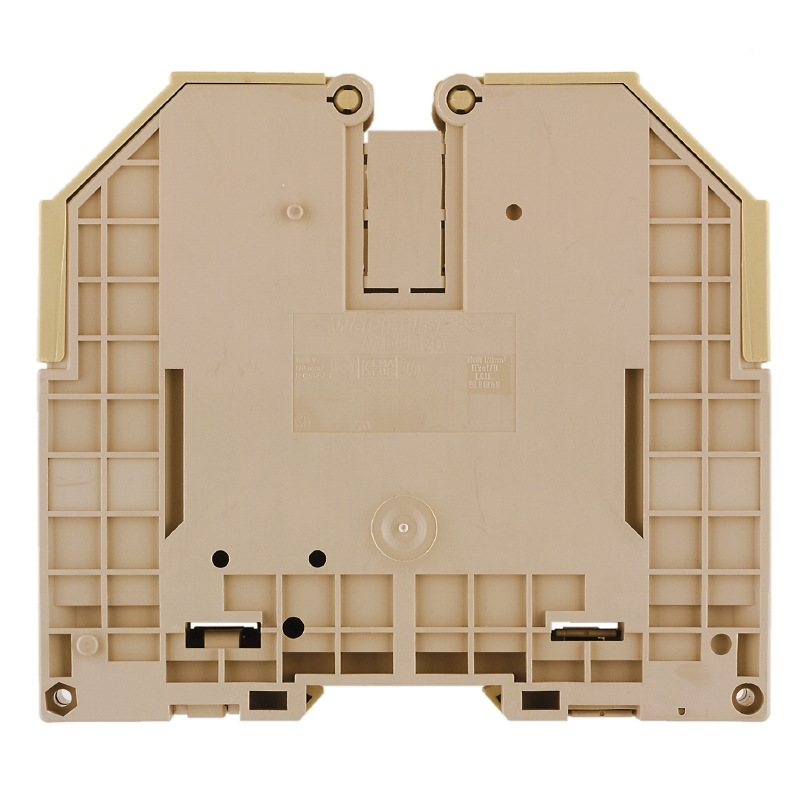

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Feed-Thru |
| 电路数 | 1 |
| 端接方式 | Screw |
| 身体上的取向 | Straight |
| 行数 | 2 |
| 外壳颜色 | Dark Beige |
| 线径规格 | 2-6 AWG |
| 标准包装 | Bag |
| 位置数 | 2 |
| 楼层数 | 1 |
| 线规或范围 - mm² | 16-120mm² |
| 颜色 | Beige |
| 剥线长度 | 30mm |
| 端接类型 | Screw |
| 线规或范围 - AWG | 2/0-6 AWG |
| 终端 - 宽度 | 27.0mm |
| 材料 - 绝缘体 | Thermoplastic, Wemid |
| 电流 - IEC | 232A |
| 电压 - IEC | 1000V |
| 电流 - UL | 175A |
| 电压 - UL | 1000V |
| 材料阻燃等级 | UL94 V-0 |
| 其他名称 | WDU 70 ALLEN HEAD WM |
| RoHS指令 | Lead free / RoHS Compliant |
| 颜色 | Beige |
| 额定电流 | 232A |
| 最高工作温度 | +120°C |
| 最低工作温度 | -50°C |
| 系列 | WDU |
| 额定电压 | 1000 V |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Cross-section for connected wire, stranded, two clampable wires, max | 35 mm² |
| Net weight | 330.89 g |
| 宽度 | 27 mm |
| Wire connection cross section AWG, max | AWG 2/0 |
| Max* voltage (ATEX) | 690 V |
| Volume resistance according to IEC 60947-7-x | 0.14 mΩ |
| Explosion-tested version | Yes |
| Rated impulse withstand voltage | 8 kV |
| Height (inches) | 5.197 inch |
| Conductor size Field wiring min* (UR) | 6 AWG |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min | 16 mm² |
| Cross-section for connected wire, stranded, two clampable wires, min | 16 mm² |
| Current size C (UR) | 175 A |
| Wire connection cross section, solid core, min* rated connection | 16 mm² |
| Installation advice | Direct mounting |
| Wire cross section min* (CSA) | 6 AWG |
| 标准 | IEC 60947-7-1 |
| Wire connection cross section, stranded, rated connection, min | 16 mm² |
| PEN function | No |
| Wire connection cross-section, finely stranded, min | 16 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max | 35 mm² |
| Number of connections | 2 |
| Tightening torque, min | 6 Nm |
| N-function | No |
| Tightening torque, max | 12 Nm |
| Conductor size Factory wiring max* (UR) | 00 AWG |
| Clamping range, rated connection, max | 120 mm² |
| Wire connection cross section AWG, min | AWG 6 |
| No* of clamping points per level | 2 |
| Band 2, No of layers, max | 6: 9 x 0.8 |
| Current size C (CSA) | 205 A |
| Pollution severity | 3 |
| Band 2, No of layers, min | 3: 9 x 0.8 |
| UL 94 flammability rating | V-0 |
| Wire connection cross section, finely stranded, max | 95 mm² |
| 版本 | Screw connection, for screwable cross-connection, closed |
| Current size B (CSA) | 205 A |
| eClass 9*0 | 27-14-11-20 |
| eClass 5*1 | 27-14-11-20 |
| 材质 | Wemid |
| PE function | No |
| Ex 2014/34/EU label | II 2 G D |
| eClass 8*1 | 27-14-11-20 |
| Conductor size Factory wiring min* (UR) | 6 AWG |
| PE connection | No |
| eClass 9*1 | 27-14-11-20 |
| eClass 6*2 | 27-14-11-20 |
| End cover plate required | No |
| Voltage, cross-connection | CrossConnectionGuide.pdf |
| Certificate No* (ATEX) | KEMA98ATEX1686U |
| 重量 | 340 g |
| eClass 7*1 | 27-14-11-20 |
| Wire cross-section, finely stranded, two clampable wires, max | 35 mm² |
| Clamping screw | M 8 |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min | 16 mm² |
| Type of connection | Screw connection |
| Open sides | closed |
| ROHS | Conform |
| Voltage size B (CSA) | 600 V |
| ETIM 3*0 | EC000897 |
| GTIN (EAN) | 4008190105990 |
| Type of mounting | Snap-on |
| Band 1, No of layers, min | 4: 16 x 0.8 |
| Current at maximum wires | 232 A |
| 额定电流 | 232 A |
| Current (ATEX) | 202 A |
| UNSPSC | 30-21-18-11 |
| Band 1, No of layers, max | 1 x 10: 16 x 0.8 |
| Wire cross section max* (CSA) | 00 AWG |
| Certificate of conformity | CFAT_WDU 70_95.pdf |
| Gauge to IEC 60947-1 | B12 |
| Mounting rail | TS 35 |
| ETIM 5*0 | EC000897 |
| Number of levels | 1 |
| Depth (inches) | 4.213 inch |
| Number of similar terminals | 1 |
| Levels cross-connected internally | No |
| Continuous operating temp, min | -50 °C |
| Voltage size D (CSA) | 600 V |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max | 50 mm² |
| Declaration of Conformity | DE_PT1001_20160414_233_ISSUE01.pdf |
| Continuous operating temp, max | 120 °C |
| Stripping length | 30 mm |
| Wire connection cross section, finely stranded, two clampable wires, min | 16 mm² |
| 身高 | 132 mm |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min | 16 mm² |
| Wire connection cross section, solid core max* rated connection | 16 mm² |
| Current size D (CSA) | 5 A |
| Connection direction | on side |
| Certificate No* (CSA) | 12400-242 |
| Number of potentials per tier | 1 |
| Voltage size C (CSA) | 600 V |
| Engineering data | EPLAN, Zuken E3.S |
| Wire cross section max* (ATEX) | 70 mm² |
| Voltage size C (UR) | 1000 V |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max | 95 mm² |
| Rated cross-section | 95 mm² |
| Clamping range, rated connection, min | 13.3 mm² |
| Wire connection cross section, stranded, rated connection, max | 120 mm² |
| Certificate No* (UR) | E60693 |
| ETIM 4*0 | EC000897 |
| Blade size | S6 (DIN 6911) |
| 深度 | 107 mm |
| Depth including DIN rail | 115.5 mm |
| Conductor size Field wiring max* (UR) | 00 AWG |
| Width (inches) | 1.063 inch |
| ETIM 6*0 | EC000897 |
| Marking EN 60079-7 | Ex e II |
| 额定电压 | 1,000 V |
| Number of potentials | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
