Bulgin

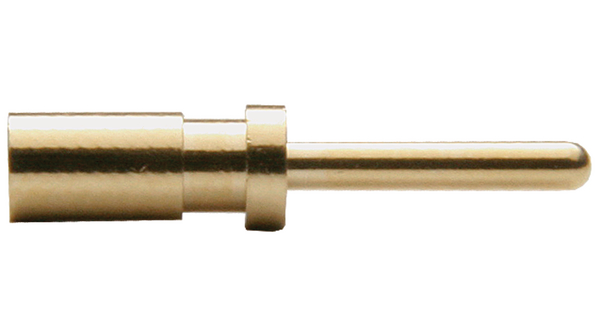

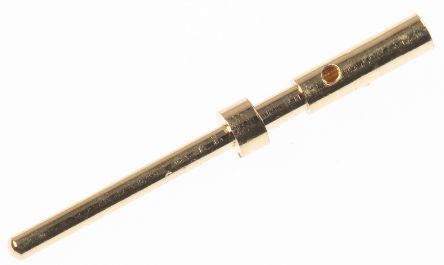

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 线规 | 24-28 AWG |
| 接触端子 | Crimp |
| 触点表面涂层 | Gold |
| 封装 | Bulk |
| 标准包装 | 1 |
| 针脚或插座 | Pin |
| 其他名称 | 708-1090 |
| 触点材料 | Copper Alloy |
| 触点电镀 | Gold |
| 性别 | Male |
| 最大接触电阻 | 5mΩ |
| 最高工作温度 | 80°C |
| 最低工作温度 | -40°C |
| 系列 | 400 |
| 端接方式 | Crimp |
| 线径规格 | 28 → 24 AWG |
| RoHS指令 | Compliant |
| 工厂包装数量 | 50 |
| 产品种类 | Standard Circular Contacts |
| 额定电流 | 1 A |
| 额定电压 | 50 V |
| 联系人性别 | Pin (Male) |
| 防护等级 | IP 68 |
| RoHS | RoHS Compliant |
| 适用于 | :Buccaneer 400 Series Circular Connectors |
| Wire Size AWG Min | :28AWG |
| Wire Size AWG Max | :24AWG |
| SVHC | :No SVHC (19-Dec-2012) |
| Cable Diameter Max | :0.51mm |
| Cable Diameter Min | :0.33mm |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| Wire Area Size Max | :0.25mm² |
| Wire Area Size Min | :0.08mm² |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
| 连接器 | contact |
| 额定电流 | 1A |
| Multiplicity | 10 |
| Connector type | male |
| spg | 100 |
| Gross weight | 1.8 g |
| Connector series | Buccaneer 400 |
| 接触镀层 | gold plated |
| 安装 | crimped |
| Connectors application | 10pin connectors, 12pin connectors |
| Wire size | 24...28AWG |
| Collective package [pcs] | 100 |
| Contact material | copper alloy |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
