Bulgin

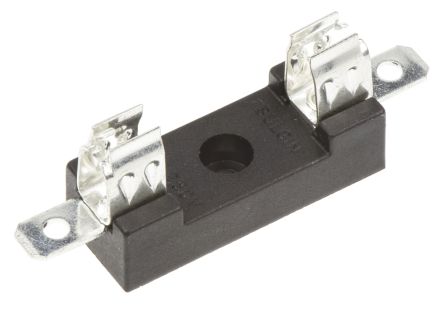

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Fuse Holders |
| RoHS | RoHS Compliant |
| 产品 | Fuse Holders |
| 额定电流 | 13 A |
| 额定电压 | 250 V |
| 极数 | 1 |
| 系列 | FX0 |
| 安装风格 | Screw |
| 工作温度范围 | - 20 C to + 85 C |
| 工厂包装数量 | 200 |
| 电压 | 250V |
| 安装类型 | Chassis Mount |
| 保险丝座型 | Block |
| 保险丝规格 | 1/4" Dia x 1-1/4" L (6.35mm x 32mm) |
| 端接类型 | Solder Lug |
| 触点表面涂层 | Tin |
| 保险丝类型 | Cartridge |
| 配用/相关产品 | 3AG |
| 标准包装 | 1 |
| 电路数 | 1 |
| 触点材料 | Brass |
| RoHS指令 | Lead free / RoHS Compliant |
| 阀体材质 | Glass Filled PET |
| Voltage Rating V DC | :250V |
| Voltage Rating V AC | :250V |
| Fuse Current | :13A |
| 保险丝座型 | :Fuse Holder |
| Holder Terminals | :Solder Lug |
| No. of Fuses | :1 |
| Fuse Size Held | :1/4" x 1-1/4", 6.3mm x 32mm, 3AB, 3AG, 0 |
| Fuse Size Metric | :6.3mm x 32mm |
| Fuse Size Imperial | :1/4" x 1-1/4" |
| Breakdown Voltage Vbr | :5kV |
| 颜色 | :Black |
| 固定中心 | :6.3mm |
| 安装孔直径 | :3.5mm |
| 材质 | :Phenolic |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-40°C |
| 终端类型 | :0.8 x 6.35mm |
| Weight (kg) | 0.008 |
| Tariff No. | 85369010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
