BELDEN

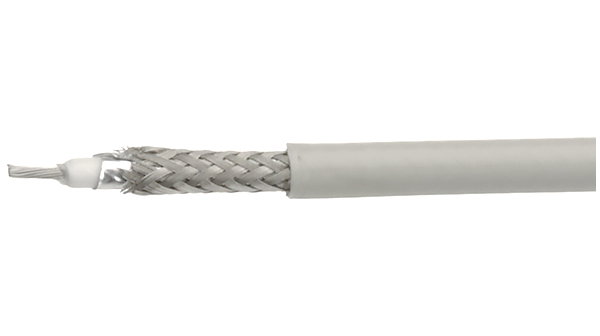

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 同轴电缆类型 | :RG58A/U |
| Conductor Size AWG | :20AWG |
| Jacket Colour | :Grey |
| 护套材质 | :PVC (Polyvinyl Chloride) |
| No. of Max Strands x Strand Size | :19 x 32AWG |
| 导体材料 | :Copper |
| External Diameter | :4.7mm |
| 阻抗 | :50ohm |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :UL |
| Attenuation @ 100MHz | :13.8dB |
| Attenuation @ 10MHz | :4.3dB |
| Attenuation @ 1GHz | :48.6dB |
| Attenuation @ 1MHz | :1.4dB |
| Belden Type Number | :9907 |
| Cable UL Style Number | :UL1354 |
| Capacitance per Metre | :83.3pF/m |
| Screen Type Primary | :Aluminium/polyester/aluminium foil |
| Screen Type, Secondary | :Tinned copper braid |
| Secondary Insulation Material | :PVC |
| Velocity of Propagation (%) | :80% |
| Weight (kg) | 0.036 |
| Tariff No. | 85444991 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
