TE Connectivity

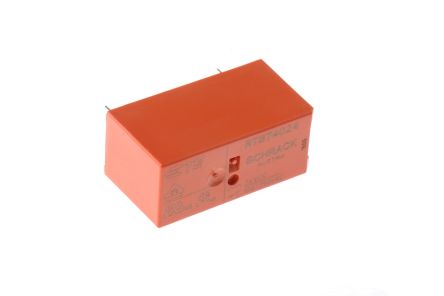

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 应用 | Power |
| 线圈电阻 | 2.304 kΩ |
| 线圈电压 | 24V dc |
| 联系配置 | SPDT |
| 触点材料 | Silver Nickel Alloy |
| 深度 | 12.7mm |
| 身高 | 15.7mm |
| 长度 | 29mm |
| 最高工作温度 | +85°C |
| 最大开关电源AC | 2.5 kVA |
| 最低工作温度 | -40°C |
| 安装类型 | PCB |
| 终端类型 | Through Hole |
| 产品范围 | :TE - Power PCB Relay RT1 Series |
| Contact Current | :10A |
| Contact Voltage VAC | :240V |
| Relay Mounting | :Through Hole |
| Approval Bodies | :VDE |
| Approval Category | :UL Recognised |
| Coil Operating Lower Percent Limit | :70% |
| Coil Operating Upper Percent Limit | :175% |
| 线圈类型 | :DC Monostable |
| Coil Voltage VDC Nom | :24V |
| Contact Current AC Max | :10A |
| Contact Current Max | :10A |
| Contact Voltage AC Max | :250V |
| Contact Voltage AC Nom | :240V |
| DC Coil Power | :250mW |
| Dielectric Voltage Coil to Contact | :5kV |
| Dielectric Voltage Contact to Contact | :1kV |
| 外部深度 | :15.7mm |
| 外部高度 | :29mm |
| External Length / Height | :29mm |
| 外宽 | :12.7mm |
| 引线间距 | :3.5mm |
| Must Actuate Voltage | :18V |
| Must Release Voltage | :2.4V |
| No. of Poles | :1 |
| Nom Operating Power | :250mW |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-40°C |
| Operating Time | :7ms |
| 继电器类型 | :General Purpose |
| 释放时间 | :3ms |
| Row Pitch | :7.5mm |
| 系列 | :RT |
| 重量 | :10g |
| Weight (kg) | 0.014 |
| Tariff No. | 85364900 |
