te connectivity / amp

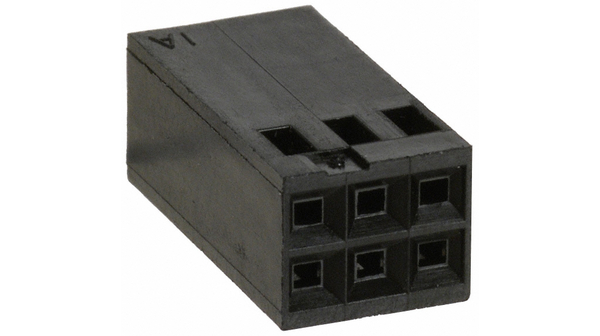

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Housing |
| 间距 | 2.54 mm |
| 触点数 | 6 |
| 行数 | 2 |
| 性别 | RCP |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 封装 | Bulk |
| 安装类型 | Free Hanging (In-Line) |
| 颜色 | Black |
| 连接器类型 | Receptacle |
| 位置数 | 6 |
| 注 | Contacts Not Provided |
| 触点类型 | Female Socket |
| 行间距 | 0.100" (2.54mm) |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 15.24mm |
| 适用于 | Centerline Double-Row Connector |
| 外壳材料 | Nylon |
| 长度 | 10.16mm |
| 系列 | Mod IV |
| 宽度 | 6.1mm |
| 工厂包装数量 | 1 |
| 应用 | Wire-to-Board |
| 绝缘电阻 | 5000 MOhms |
| 产品种类 | Headers & Wire Housings |
| 工作温度范围 | - 65 C to + 105 C |
| 位置/触点数 | 6 |
| 商品名 | AMPMODU |
| 产品类型 | Wire Housings |
| 额定电压 | 250 VAC |
| RoHS | RoHS Compliant |
| 房屋性别 | Receptacle |
| 工作温度范围 | -65C to 105C |
| 额定电流（最大值） | 3/Contact A |
| 联系方式行数 | 2 |
| 外壳颜色 | Black |
| 产品长度（mm ） | 10.16 mm |
| 产品厚度（毫米） | 15.24 mm |
| 产品高度（mm ） | 6.1 mm |
| 额定电压最大 | 250VAC |
| 间距（mm） | 2.54 mm |
| 产品范围 | :TE - AMPMODU Mod IV Series |
| No. of Contacts | :6 |
| No. of Rows | :2 |
| 节距 | :2.54mm |
| 触点电镀 | :Gold |
| 触点材料 | :Beryllium Copper |
| Approval Category | :CSA, UL |
| Connector Mounting Orientation | :PC Board |
| 额定电流 | :3A |
| 房屋类型 | :Black Thermoplastic UL94V-0 |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-65°C |
| 端接方式 | :Crimp |
| Weight (kg) | 0.05 |
| Tariff No. | 85369010 |
| Angle | Straight |
| Brand/Series | AMPMODU/MODIVSeries |
| Centerline,Matrix | 0.100x0.100in. |
| ContactType | Crimp |
| Current,Ratings | 3A |
| InsulationResistance | 5000Megohms |
| Length,Overall | 0.305" |
| Material,Housing | Nylon |
| MatingPolarization | No |
| NumberofContacts | 6 |
| NumberofPositions | 6 |
| NumberofRows | 2 |
| PinSpacing | 0.1" |
| PrimaryType | InterconnectSystem |
| 盖章 | Yes |
| 标准 | ULE28476,CSALR7189,RoHSCompliant,ELVCompliant |
| Temperature,Operating | -65to+105°C |
| 端子 | CrimpSnap-In |
| TerminationResistance | 12Milliohms |
| Voltage,DielectricStrength | 750V |
| Voltage,Rating | 250VAC |
