te connectivity / corcom

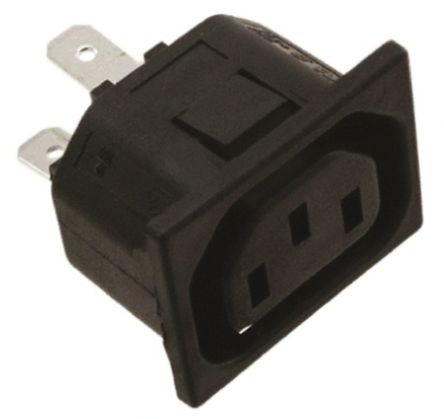

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | 1609133-2, 6ESRFC3 |
| 子类别 | Power Entry Module |
| 交货期 | 59 Days |
| 安装类型 | Panel Mount, Snap-In |
| 端接类型 | Quick Connect - 0.250" (6.3mm) |
| 连接器类型 | Receptacle, Female Sockets |
| 电流 | 15A |
| 保险丝盒 | Drawer Not Required |
| 电压 | 250V |
| 标准包装 | 200 |
| 连接器类型 | IEC 320-C13 |
| 位置数 | 3 |
| RoHS指令 | Lead free / RoHS Compliant |
| 触点材料 | Brass |
| 触点电镀 | Tin |
| 额定电流 | 15A |
| 性别 | Female |
| 外壳材料 | Thermoplastic |
| 最高工作温度 | +65°C |
| 插头/插座 | Socket |
| 极格式 | 2P |
| 系列 | SR Series |
| 端接方式 | Quick Connect |
| 额定电压 | 120 V ac, 250 V ac |
| 工厂包装数量 | 50 |
| 产品 | Inlets |
| 产品种类 | AC Power Entry Modules |
| 过滤 | No |
| 开关功能 | Not Switched |
| 安装风格 | Snap In |
| 滤波器类型 | EMI/RFI Filter |
| 融合 | No |
| 零件号别名 | 1609133-2 |
| RoHS | RoHS Compliant |
| Connector Mounting | :Snap In |
| 接触端子 | :- |
| Filter Terminals | :Quick Connect |
| Weight (kg) | 0.014 |
| Tariff No. | 85369010 |
| AgencyApprovals | UL,CSA,VDE |
| Brand/Series | SRSeries |
| 配置 | Female |
| ContactType | Snap-In |
| CurrentRating | 15A |
| CurrentRating2 | 10A@VDE |
| Current,Rating | 15A |
| Dimension,Body | 1.39×1.11×1.258×1.406(35.3×28.2×31.95×35.7)In.(mm) |
| Dimensions,Terminal | 0.25×0.032(6.3×0.8)In.(mm) |
| FlammabilityRating | ULV-2 |
| Material,Body | Thermoplastic(Insulator) |
| Material,Contact | Brass |
| Material,Housing | Thermoplastic(ULV-2flameclass) |
| Material,Plug | SolidBrass,NickelPlated |
| Material,Terminal | Brass,TinPlated |
| MountMethod | Front |
| MountingType | Snap-In |
| NumberofContacts | 3 |
| NumberofPoles | 2 |
| PEMType | ACConnector15 |
| PrimaryType | Power |
| 标准 | UL,CSA,VDE |
| Temperature,Operating | 65°C |
| 端子 | QuickDisconnect |
| Thickness,Panel | 0.059(1.5)In.(mm) |
| Voltage,Rating | 120/250VAC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
