te connectivity / amp

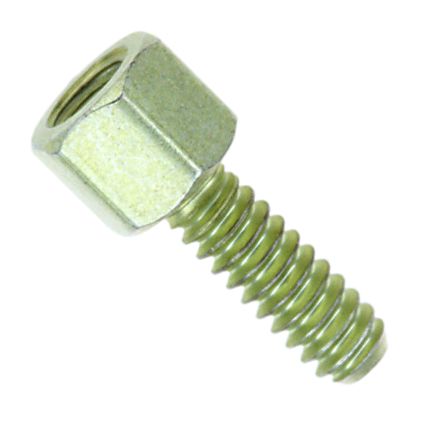

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Screw Lock |
| 家庭 | 5205818 |
| 标准包装 | Bulk |
| 产品种类 | D-Sub Tools & Hardware |
| RoHS | RoHS Compliant |
| 产品 | Hardware |
| 性别 | Female |
| 螺丝材质 | Steel |
| 螺丝电镀 | Zinc |
| 工厂包装数量 | 1 |
| 螺纹尺寸 | 4-40 UNC |
| 评论 | For Rear Panel Mount. |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 主体镀层 | Zinc |
| GovernmentIndustry资格 | No |
| 品牌 | AMP |
| 包装方式 | Individual |
| 包装数量 | 100 |
| 螺钉锁形式 | Screwlock Only |
| 螺纹长度（毫米（ ） ） | 7.92 [0.312] |
| 产品类型 | Female Screw Locks |
| RoHSELV符合记录 | Always was RoHS compliant |
| 螺丝表面处理 | Yellow Chromate |
| 长度 - 以下的螺纹部分头 | 0.312" (7.92mm) |
| 附件类型 | Jackscrew Socket |
| 配用/相关产品 | D-Sub Connectors Series AMPLIMITE HDF, HDP |
| 其他名称 | 52058182 |
| RoHS指令 | Lead free / RoHS Compliant |
| 封装 | Individual |
| 产品长度（mm ） | 12.77 mm |
| 产品厚度（毫米） | 4.74 mm |
| 适用于 | :AMPLIMITE Series D-Sub Connectors |
| Thread Size - Metric | :- |
| Thread Size - Imperial | :#4-40 |
| Screw Head Height | :4.78mm |
| 螺丝长度 | :7.93mm |
| 系列 | :AMPLIMITE |
| Weight (kg) | 0 |
| Tariff No. | 85366910 |
| FinishPlating | YellowChromate |
| Length,Screw | 0.500in. |
| Length,Thread | 0.312in. |
| Material,Screw | ColdRolledSteel |
| Size,Thread | 4-40UNC |
| UsedWith | ForMetal-ShellandAll-PlasticConn(HDE,HDF,HDP) |
