te connectivity / amp

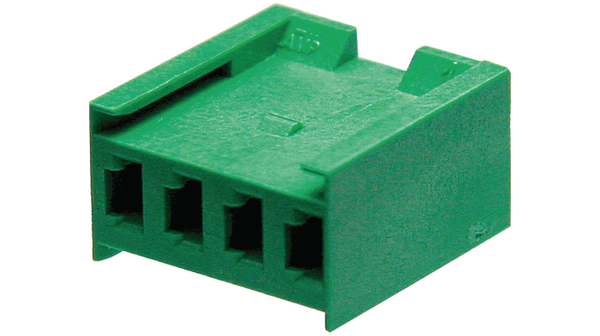

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Housing |
| 间距 | 3.96 mm |
| 触点数 | 4 |
| 行数 | 1 |
| 性别 | RCP |
| 线径规格 | 18-26 AWG |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 简介 | Standard |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 盖章 | Yes |
| 要终止 | Wire |
| 键控 | No |
| 外壳材料 | Polycarbonate |
| 中心线矩阵（毫米（ ） ） | 3.96 [.156] |
| 外壳颜色 | Green |
| 壳体防火等级 | UL 94V-1 |
| 产品类型 | Housing |
| RoHSELV符合记录 | Always was RoHS compliant |
| 位置数 | 4 |
| 封装 | Bulk |
| 安装类型 | Free Hanging (In-Line) |
| 颜色 | Green |
| 连接器类型 | Receptacle |
| 注 | Contacts Not Provided |
| 触点类型 | Female Socket |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 深度 | 16.5mm |
| 长度 | 15.7mm |
| 系列 | AMPMODU, I |
| 宽度 | 9.3mm |
| 工厂包装数量 | 1000 |
| 产品种类 | Headers & Wire Housings |
| 安装风格 | Wire |
| 位置/触点数 | 4 |
| 商品名 | AMPMODU |
| RoHS | RoHS Compliant |
| 产品范围 | :TE - AMPMODU Mod I Series |
| No. of Contacts | :4 |
| No. of Rows | :1 |
| 节距 | :3.96mm |
| 触点电镀 | :- |
| 触点材料 | :- |
| Connector Mounting Orientation | :PC Board |
| 可燃性等级 | :UL94V-0 |
| 房屋类型 | :Receptacle |
| 绝缘电阻 | :5000Mohm |
| 材质 | :Polycarbonate |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-65°C |
| 端接方式 | :Crimp |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
| Mechanical mounting | for cable |
| 连接器 | plug |
| Multiplicity | 1 |
| Type of pin configuration | 1x4 |
| Connector type | female |
| Gross weight | 1.85 g |
| 针数 | 4 |
| Connector variant | w/o terminals |
| Connector series | AMPMODU MOD I |
| spg | 250 |
| Collective package [pcs] | 250 |
| Contacts pitch | 3.96mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
