te connectivity / amp

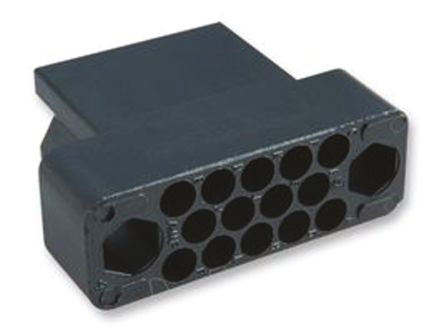

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Housing |
| 间距 | 3.81 mm |
| 触点数 | 14 |
| 行数 | 3 |
| 性别 | PL |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 中心固定 | No |
| 评论 | Housing accepts type II, type III+ and Subminiature Coaxicon contacts.; Pins an |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 安装配件 | None |
| 安装 | Free Hanging, Panel Mount |
| 包装方式 | Loose Piece |
| 连接器类型 | Standard |
| 外壳材料 | Phenolic |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| 外壳颜色 | Black |
| 产品类型 | Housing |
| RoHSELV符合记录 | Always was RoHS compliant |
| 位置数 | 14 |
| 封装 | Bulk |
| 连接器用途 | Plug |
| 安装类型 | Panel Mount |
| 颜色 | Black |
| 注 | Contacts Not Provided |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 23.24mm |
| 适用于 | Wire-to-Panel Pin & Socket Connector, Wire-to-Wire Pin & Socket Connector |
| 长度 | 31.75mm |
| 系列 | AMP M |
| 宽度 | 11.18mm |
| 工厂包装数量 | 350 |
| 产品种类 | Pin & Socket Connectors |
| 端接类型 | Solder |
| 联系人性别 | Pin (Male) |
| 位置/触点数 | 14 |
| 安装风格 | Through Hole |
| RoHS | RoHS Compliant |
| 触点材料 | Steel |
| 工作温度范围 | -55C to 150C |
| 联系方式行数 | 3 |
| 产品长度（mm ） | 31.75 mm |
| 产品厚度（毫米） | 23.24 mm |
| 产品高度（mm ） | 11.18 mm |
| 间距（mm） | 3.81 mm |
| No. of Contacts | :14 |
| No. of Rows | :3 |
| 节距 | :3.81mm |
| Connector Mounting | :Cable |
| 接触端子 | :- |
| 触点电镀 | :- |
| Weight (kg) | 0.005 |
| Tariff No. | 85369010 |
| Angle | Straight |
| Brand/Series | MSeries |
| Color,Housing | Black |
| ConnectorType | Standard |
| ForUseWith | TypeII,typeIII+andsubminiaturecoaxiconcontacts |
| Length,Overall | 1.25" |
| Material,Housing | Phenolic |
| MountingHoleSize | 0.12" |
| MountingType | FreeHanging,PanelMount |
| NumberofContacts | 14 |
| NumberofPositions | 14 |
| NumberofRows | 3 |
| PinSpacing | 0.15" |
| PrimaryType | InterconnectSystem |
| 标准 | RoHSandELVCompliant |
