Pomona Electronics

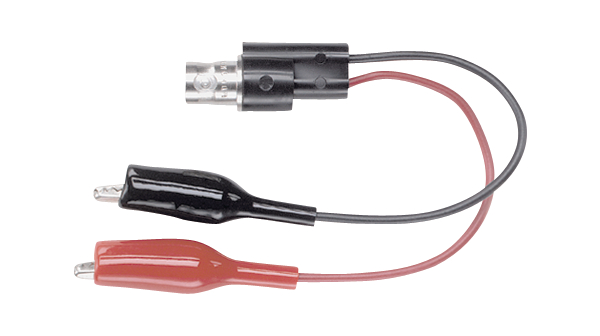

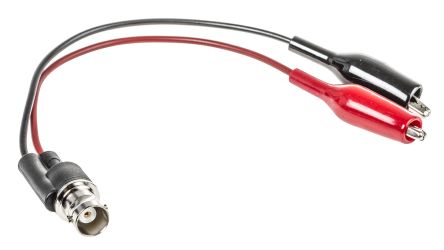

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Test Leads |
| RoHS | RoHS Compliant |
| 设备类型 | BNC Breakout Cables |
| 连接器类型 | BNC (female) to Minigator clip |
| 颜色 | Black, Red |
| 电缆类型 | 18 AWG |
| 触点材料 | Brass |
| 触点电镀 | Gold, Nickel |
| 产品特点 | Black wire is connected to BNC shell, red wire to BNC center contact |
| 绝缘材料 | Vinyl |
| 工作温度 | + 50 C |
| 工厂包装数量 | 6 |
| 额定电压 | 45 V |
| 零件号别名 | 1934202 |
| 电压 - 额定 | 45VAC |
| 线规 | 20 AWG |
| 第一连接器 | BNC, Female Socket (Jack) |
| 材料 - 绝缘体 | Poly-Vinyl Chloride (PVC) |
| 第二连接器 | Alligator Clip, Miniature, Insulated (2) |
| 标准包装 | 5 |
| 温度范围 | 122°F (50°C) |
| 配置 | BNC to Alligator |
| 电缆长度 | 5.9" (149.86mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 颜色 | Black, Red |
| 连接器A性别 | Female |
| 连接器的取向 | Straight |
| 连接器B方向 | Straight |
| 引线长度 | 149mm |
| 材质 | Gold Plated Beryllium Copper, Nickel Plated Brass |
| 最高工作温度 | +50°C |
| 二次连接器类型 | Crocodile Clip |
| 连接A型 | BNC |
| Insulator Colour | :Black, Red |
| Test Connector Type A | :BNC Plug |
| Test Connector Type B | :Crocodile Clip |
| SVHC | :No SVHC (20-Jun-2013) |
| 大会电缆类型 | :Test |
| 连接器B型 | :Alligator Clip, x 2 |
| 套件包含 | :Set of One Black and One Red Test Lead |
| Weight (kg) | 0.0014 |
| Tariff No. | 90303100 |
| ConnectorType | BNC |
| Diameter,Terminal | 0.187in. |
| Material,Dielectric | PTFE |
| Temperature,Operating | +50°C(Max.) |
| Voltage,Operating | 45V(rms)(Max.) |
| WireSize | 20AWG |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
