Panasonic

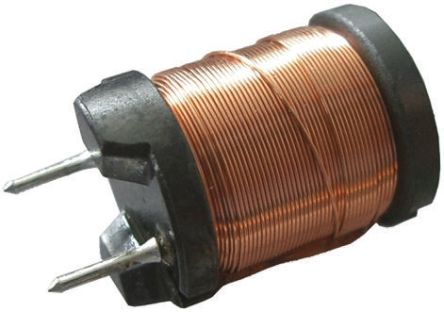

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 深度 | 10mm |
| 外形尺寸 | 13 x 10 x 15mm |
| 身高 | 15mm |
| 电感 | 270 μH |
| 引线间距 | 5mm |
| 长度 | 13mm |
| 最大直流电流 | 1A |
| 最大直流电阻 | 280mΩ |
| 容差 | ±10% |
| 产品范围 | :PANASONIC - ELC-10D Series |
| Inductance Tolerance | :± 10% |
| DC Resistance Max | :0.28ohm |
| RMS Current (Irms) | :1A |
| Case Dimensions | :10mm x 15mm |
| 芯材 | :Ferrite |
| DC Current Rating | :1A |
| Inductor Case Style | :Radial Leaded |
| 电感类型 | :Choke Coil |
| 引线间距 | :5mm |
| No. of Pins | :2 |
| 测试频率 | :10kHz |
| Weight (kg) | 0.0045 |
| Tariff No. | 85045020 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
