panasonic

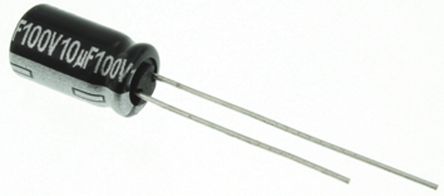

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装 | Through Hole |
| 电容值 | 10 uF |
| 电压 | 100 Vdc |
| 容差 | 20 % |
| 纹波电流 | 54 mA |
| 寿命 | 1000 h |
| 产品直径 | 6.3 mm |
| 产品高度 | 11.2 mm |
| 引脚间距为径向 | 2.5 mm |
| 工作温度 | -55 to 105 °C |
| 结构 | Aluminum Cylindrical Can |
| 端接类型 | Radial |
| 标准包装 | Bulk |
| 单位包 | 200 |
| 最小起订量 | 20000 |
| 工作温度范围 | -55C to 105C |
| 弧度硬化 | No |
| 故障率 | Not Required |
| 引线直径（标称） | 0.5 mm |
| 电容 | 10000000 pF |
| 公差（ +或 - ） | 20% |
| DCL | 10@2Min uA |
| 引线间距（ NOM ） | 2.5 mm |
| 安装风格 | Through Hole |
| 封装 | Bulk |
| 类型 | Electrolytic |
| 产品长度（mm ） | Not Required mm |
| 产品厚度（毫米） | Not Required mm |
| 产品高度（mm ） | 11.2 mm |
| 外形尺寸（mm ） | 6.3 X 11.2 |
| 产品直径（mm ） | 6.3 mm |
| 产品范围 | :PANASONIC - NHG Series |
| 电容公差 | :± 20% |
| 额定电压 | :100V |
| 直径 | :6.3mm |
| 身高 | :11.2mm |
| Capacitor Terminals | :Radial Leaded |
| 引线间距 | :2.5mm |
| Life Time @ Temperature | :2000 hours @ 105°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :105°C |
| External Length / Height | :11.2mm |
| 引线直径 | :0.5mm |
| No. of Pins | :2 |
| Operating Lifetime | :2000h |
| 工作温度范围 | :-55°C to +105°C |
| Ripple Current AC | :54mA |
| Ripple Current Frequency | :120Hz |
| Ripple Current Temperature | :105°C |
| 系列 | :NHG |
| 终端类型 | :Wire Ended |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Voltage Rating V DC | :100V |
| Weight (kg) | 0.0007 |
| Tariff No. | 85322200 |
| CaseSize | 6.3mmDia.x11.2mmL |
| Material,Element | AluminumElectrolytic |
| Temperature,Operating,Maximum | 105°C |
| Temperature,Operating,Minimum | –55°C |
| 端子 | Radial |
| Voltage,Rating | 100VDC |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
