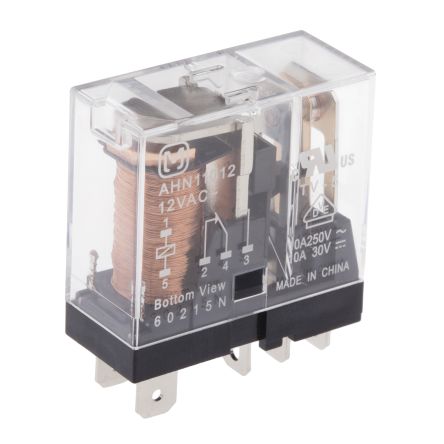

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 应用 | Power |
| 线圈功率 | 1.4VA |
| 线圈电阻 | 270 Ω |
| 线圈电压 | 12V ac |
| 联系配置 | SPDT |
| 触点材料 | Silver Tin Oxide |
| 深度 | 13mm |
| 身高 | 29mm |
| 隔离线圈对触点 | 5000V rms |
| 长度 | 29mm |
| 最高工作温度 | +70°C |
| 最大开关电流AC | 16 A |
| 最大开关电流DC | 10 A |
| 最大开关电源AC | 4000 VA |
| 最大开关电源DC | 300 W |
| 最大开关电压AC | 250V ac |
| 最大开关电压DC | 30V dc |
| 安装类型 | PCB |
| 终端类型 | Through Hole |
| Initial contact resistance, max (By voltage drop 6 V DC 1 A) | 100 mohm |
| Nominal operating power - 50 Hz | Approx. 1.1 to 1.4 VA |
| 操作功能 | Single Side Stable |
| Expected life (min operations) - Mechanical (at 300 cpm) | AC: 10^7, DC: 210^7 |
| 安装 | Plug-In |
| Max switching power | 4,000 VA, 300W |
| Drop-out voltage, (min) (Initial) | 3.6 VAC |
| Unit weight | Approx. 19g .67 oz |
| 电流 | 10 Amps |
| Release time (without diode) (at nominal voltage) | Max. 10 ms |
| Pick-up voltage, (max) (Initial) | 9.6 VAC |
| Initial breakdown voltage - Between contact sets | 3,000 Vrms for 1 min. (2 Form C type only) |
| Initial breakdown voltage - Between contact and coil | 5,000 Vrms for 1 min. |
| Contact material | Silver alloy |
| Initial insulation resistance | Min. 1,000 Mohm at 500 V DC |
| Functional Shock Resistance | Min. 100 m/s^2 {10 G} |
| Nominal switching capacity | 10A 250V AC, 10A 30V DC |
| MainCategory | Relays |
| Initial breakdown voltage - Between open contacts | 1,000 Vrms for 1 min. |
| Ambient temp | 40C to +70C, 40F to +158F |
| Destructive Shock Resistance | Min. 1,000 m/s^2 {100 G} |
| Max operating speed | 20 cpm (at max. rating) |
| Nominal operating power | 0.53W 0.9VA |
| Max switching current | 16 A (at AC load), 10 A (at DC load) |
| SubCategory | General Purpose Relay |
| 湿度 | 5 to 85% R.H. |
| Nominal coil current, (20%) - 60 Hz | 75 mA |
| Expected life (min operations) - Electrical (at 20 cpm) (at rated load) | 10^5 |
| Max allowable voltage | 16.8 VAC |
| Temperature rise, max (at 70C) (at nominal voltage) | 60C |
| Destructive Vibration resistance | 10 to 55 Hz at double amplitude of 1.5 mm |
| Surge suppression | Without |
| Nominal operating power - 60 Hz | Approx. 0.9 to 1.2 VA |
| Min switching current | 5V 100mA DC |
| Max switching voltage | 250V AC, 30V DC |
| Nominal coil current, (20%) - 50 Hz | 93 mA |
| Operation indication | Without LED indication |
| Functional Vibration resistance | 10 to 55 Hz at double amplitude of 1.5 mm |
| Operate time (at nominal voltage) | Max. 15 ms |
| 线圈功率 | 1.4W |
| 安装类型 | PCB（印刷电路板）安装 |
| 端子类型 | 通孔 |
| 工作温度范围 | -40 → +70°C |
| 最大切换电压 交流 | 250V 交流 |
| 长度 | 29mm |
| 应用类型 | 电源 |
| 最大切换电压 直流 | 30V 直流 |
| 高度 | 29mm |
| 深度 | 13mm |
| 线圈电阻 | 270 Ω |
| 寿命 | 100000（电气）次循环，10000000（交流机械）次循环，20000000（直流机械）次循环 |
| Board Level Components | Y |
| 触点材料 | 银合金 |
| 最小工作温度 | -40°C |
| 最大切换电流 直流 | 10 A |
| 尺寸 | 29 x 13 x 29mm |
| 最大切换电流 交流 | 16 A |
| 最大切换功率 交流 | 4 kVA |
| 最大工作温度 | +70°C |
| 线圈对触点绝缘 | 5kV rms |
| 触点配置 | 单刀双掷 |
| 线圈电压 | 12 V 交流 |
| 最大切换功率 直流 | 300 W |
| RESOURCE TYPE | LINK |
|---|---|
