on semiconductor

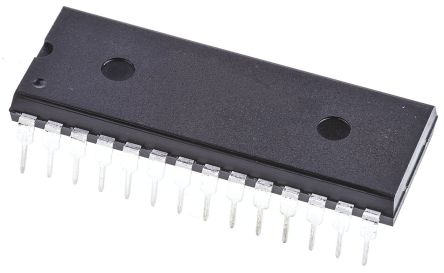

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 28PDIP-H |
| 类型 | Stepping Motor Driver |
| 工作温度 | -20 to 85 °C |
| 安装 | Through Hole |
| 标准包装 | Ammo Pack |
| 供应商封装形式 | PDIP-H |
| 标准包装名称 | PDIP |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 85 |
| Package Height | 4 |
| 最大工作电源电压 | 32 |
| Package Width | 11.2 |
| PCB | 28 |
| Package Length | 26.75 |
| 最低工作温度 | -20 |
| 最低工作电源电压 | 9 |
| 引脚数 | 28 |
| 铅形状 | Through Hole |
| 功能 | Driver - Fully Integrated, Control and Power Stage |
| 安装类型 | Through Hole |
| 应用范围 | General Purpose |
| 电压 - 负载 | 9 V ~ 32 V |
| 供应商设备封装 | 28-HDIP |
| 封装 | Bulk |
| 电流 - 输出 | 2.5A |
| 电机型号 - 步进 | Bipolar |
| 电压 - 电源 | 0 V ~ 5.5 V |
| 接口 | Parallel |
| 输出配置 | Full H-Bridge, (2) Dual |
| 封装/外壳 | 28-SDIP (0.550", 12.70mm) Exposed Pad |
| RoHS指令 | Lead free / RoHS Compliant |
| 工作电源电压 | 9 V to 32 V |
| 产品 | Stepper Motor Controllers / Drivers |
| 电源电流 | 3.2 mA |
| 安装风格 | Through Hole |
| 功率耗散 | 3 W |
| 封装/外壳 | DIP-28 |
| RoHS | RoHS Compliant |
| 包装类型 | PDIP-H |
| 工作温度（最大） | 85C |
| 工作温度（最小值） | -20C |
| 工作温度分类 | Commercial |
| 弧度硬化 | No |
| 工作电源电压（最小值） | 9 V |
| 工作电源电压（最大值） | 32 V |
| Motor Type | :Stepper |
| No. of Outputs | :2 |
| 输出电流 | :2.5A |
| Driver Case Style | :DIP |
| No. of Pins | :28 |
| Supply Voltage Min | :9V |
| Supply Voltage Max | :32V |
| Operating Temperature Min | :-20°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| 工作温度范围 | :-20°C to +85°C |
| Supply Voltage Range | :9V to 32V |
| Weight (kg) | 0.002 |
| Tariff No. | 85423990 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
