NXP

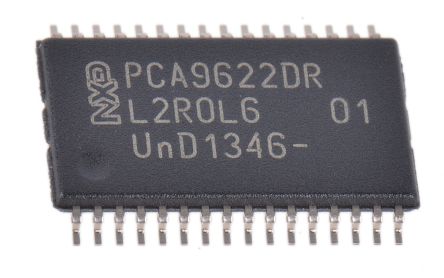

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 拓扑结构 | :- |
| No. of Outputs | :16 |
| 输出电流 | :100mA |
| 输出电压 | :40V |
| Driver Case Style | :TSSOP |
| Input Voltage Min | :2.3V |
| Input Voltage Max | :5.5V |
| Dimming Control Type | :PWM |
| 开关频率 | :1MHz |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :9622 |
| 输入电压 | :2.3V to 5.5V |
| LED Driver Application | :Backlight, Display, LED Status Information, RGB or RGBA LED Driver |
| No. of Pins | :32 |
| 工作温度范围 | :-40°C to +85°C |
| Weight (kg) | 0.000175 |
| Tariff No. | 85423190 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
