NXP

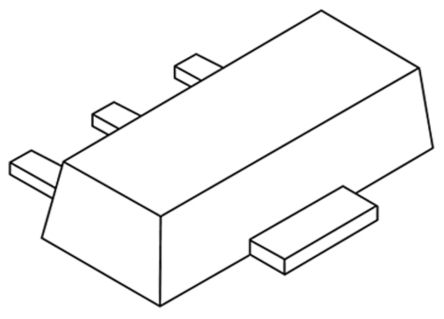

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 晶体管极性 | :NPN |
| Collector Emitter Voltage V(br)ceo | :60V |
| Transition Frequency ft | :180MHz |
| 功耗 | :500mW |
| DC Collector Current | :1A |
| DC Current Gain hFE | :63 |
| Operating Temperature Min | :-65°C |
| Operating Temperature Max | :150°C |
| Transistor Case Style | :SOT-89 |
| No. of Pins | :3 |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Collector Emitter Voltage Vces | :500mV |
| 连续集电极电流Ic最大 | :1A |
| Current Ic Continuous a Max | :1A |
| Current Ic hFE | :150mA |
| Current Temperature | :25°C |
| Full Power Rating Temperature | :25°C |
| Gain Bandwidth ft Typ | :180MHz |
| Hfe Min | :63 |
| No. of Transistors | :1 |
| 工作温度范围 | :-65°C to +150°C |
| 封装 | :Cut Tape |
| Power Dissipation Ptot Max | :500mW |
| SMD Marking | :BE |
| 端接类型 | :SMD |
| Voltage Vcbo | :60V |
| Weight (kg) | 0.0001 |
| Tariff No. | 85412100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
