INFINEON

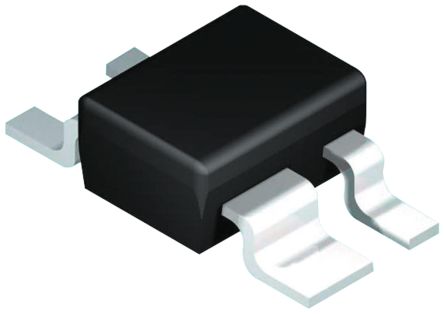

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| P（ TOT ） | 0.3W |
| 匹配代码 | BCV62C |
| I（C ） | 0.1A |
| V（ CEO ） | 30V |
| 包装 | SOT143 |
| 单位包 | 3000 |
| 标准的提前期 | 6 weeks |
| 最小起订量 | 3000 |
| 极化 | PNP |
| 无铅Defin | RoHS-conform |
| 电流增益 | 520 |
| V（ CBO ） | 30V |
| 晶体管极性 | :PNP |
| Collector Emitter Voltage V(br)ceo | :30V |
| Transition Frequency ft | :250MHz |
| 功耗 | :300mW |
| DC Collector Current | :100mA |
| DC Current Gain hFE | :520 |
| Transistor Case Style | :SOT-143 |
| No. of Pins | :4 |
| MSL | :MSL 1 - Unlimited |
| Collector Emitter Voltage Vces | :650mV |
| 连续集电极电流Ic最大 | :100mA |
| Current Ic @ Vce Sat | :100mA |
| Current Ic Continuous a Max | :100mA |
| Current Ic hFE | :2mA |
| 外部深度 | :2.6mm |
| External Length / Height | :1mm |
| 外宽 | :2.9mm |
| Gain Bandwidth ft Typ | :250MHz |
| Hfe Min | :125 |
| Module Configuration | :Dual |
| No. of Transistors | :2 |
| 引脚配置 | :b |
| Power Dissipation Ptot Max | :300mW |
| SMD Marking | :3Ls |
| Voltage Vcbo | :30V |
| Weight (kg) | 0.000009 |
| Tariff No. | 85412900 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
