texas instruments

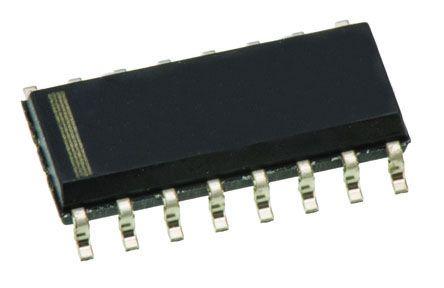

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 16SOIC |
| 建筑 | Switched Capacitor |
| 电路数 | 4 |
| 最大订单 | 2nd |
| 截止频率 | 100(Max) kHz |
| 工作电源电压 | ±15 V |
| 类型 | Universal |
| 工作温度 | -25 to 85 °C |
| 安装 | Surface Mount |
| 标准包装 | Rail / Tube |
| 供应商封装形式 | SOIC |
| 标准包装名称 | SOIC |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 85 |
| Package Height | 2.35(Max) |
| 最小双电源电压 | ±6 |
| 典型双电源电压 | ±15 |
| 封装 | Tube |
| Maximum Dual Supply Voltage | ±18 |
| Package Width | 7.6(Max) |
| 电源类型 | Dual |
| PCB | 16 |
| Package Length | 10.5(Max) |
| 最低工作温度 | -25 |
| 引脚数 | 16 |
| 铅形状 | Gull-wing |
| 滤波器类型 | Universal, Continuous-Time |
| 安装类型 | Surface Mount |
| 供应商设备封装 | 16-SOIC |
| 电压 - 电源 | ±6 V ~ 18 V |
| 滤波器阶数 | * |
| 封装/外壳 | 16-SOIC (0.295", 7.50mm Width) |
| 频率 - 截止或中心 | 100kHz |
| 过滤器数 | 3 |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 10.28 x 7.52 x 2.35mm |
| 身高 | 2.35mm |
| 长度 | 10.28mm |
| 最高工作温度 | +85 °C |
| 最低工作温度 | -25 °C |
| 包装类型 | SOIC |
| 典型双电源电压 | ±15V |
| 宽度 | 7.52mm |
| 工厂包装数量 | 40 |
| 产品种类 | Active Filters |
| 系列 | UAF42 |
| 单位重量 | 0.014829 oz |
| 电源电压 - 最大 | 18 V |
| 安装风格 | SMD/SMT |
| 通道数 | 4 Channel |
| 电源电压 - 最小 | 6 V |
| 截止频率 | 100 kHz |
| RoHS | RoHS Compliant |
| 工作温度（最大） | 85C |
| 工作温度（最小值） | -25C |
| 为了过滤器（最大） | 2nd |
| 工作温度分类 | Commercial |
| Dual Supply Voltage (Typ) | �15 V |
| 电源要求 | Dual |
| Dual Supply Voltage (Min) | �6 V |
| 弧度硬化 | No |
| 单电源电压（最小值） | Not Required V |
| 单电源电压（最大值） | Not Required V |
| 单电源电压（典型值） | Not Required V |
| Dual Supply Voltage (Max) | �18 V |
| IC Filter Type | :Universal |
| No. of Filters | :3 |
| Supply Voltage Min | :6V |
| Supply Voltage Max | :18V |
| Filter IC Case Style | :SOIC |
| No. of Pins | :16 |
| Operating Temperature Min | :-25°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (16-Dec-2013) |
| Base Number | :42 |
| Filter Class | :2nd Order |
| Filter Response | :Low Pass, High Pass, Band Pass, Band Reject |
| IC Generic Number | :42 |
| 工作温度范围 | :-25°C to +85°C |
| Supply Voltage Range | :± 6V to ± 18V |
| 端接类型 | :SMD |
| Weight (kg) | 0.000424 |
| Tariff No. | 85411000 |
| Status | ACTIVE |
| Replaced By | |
| Temp (oC) | -25 to 85 |
| Package | Pins | SOIC (DW) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 40 | TUBE |
| FilterType | Universal |
| Functional Diagram | fbd_sbfs002b.gif |
| Max PLL Freq | |
| Vs (+/-) | 18 |
| Package Group | PDIP SOIC |
| Datasheet | SBFS002B |
| 频率 | 100 |
| Filter Order Max | 2 |
| Vos | 5 |
| RESOURCE TYPE | LINK |
|---|---|
