texas instruments

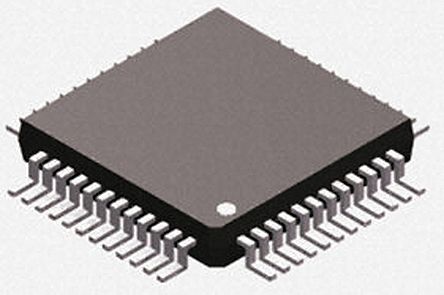

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 48HTQFP EP |
| 支持的协议 | IEEE 802.3u |
| 类型 | Ethernet Transceiver |
| 变送器数 | 1 |
| 电源类型 | Single |
| 最小单电源电压 | 3 V |
| 最大单电源电压 | 3.6 V |
| 标准包装 | Trays |
| 产品种类 | Ethernet ICs |
| RoHS | RoHS Compliant |
| 产品 | Ethernet Transceivers |
| 数据传输速率 | 10 Mb/s, 100 Mb/s |
| 电源电压 - 最大 | 3.6 V |
| 电源电压 - 最小 | 2.38 V |
| 最高工作温度 | + 85 C |
| 封装/外壳 | TQFP-48 |
| 封装 | Tray |
| 以太网连接类型 | 10Base-T, 100Base-TX |
| 最大功率耗散 | 189 mW |
| 最低工作温度 | - 40 C |
| 安装风格 | SMD/SMT |
| 工厂包装数量 | 250 |
| 支持标准 | 802.3, 802.3u |
| 供应商封装形式 | HTQFP EP |
| 标准包装名称 | QFP |
| 欧盟RoHS指令 | Compliant |
| Package Height | 1.05(Max) |
| 安装 | Surface Mount |
| Package Width | 7.2(Max) |
| PCB | 48 |
| Package Length | 7.2(Max) |
| 引脚数 | 48 |
| 铅形状 | Gull-wing |
| 协议 | Ethernet |
| 安装类型 | Surface Mount |
| 的驱动器/接收器数 | 1/1 |
| 供应商设备封装 | 48-HTQFP (7x7) |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 电源 | 3 V ~ 3.6 V |
| 其他名称 | 296-25126 |
| 封装/外壳 | 48-TQFP Exposed Pad |
| RoHS指令 | Lead free / RoHS Compliant |
| 系列 | TLK100 |
| 收发器数量 | 1 |
| 工作温度（最大） | 85C |
| 工作温度（最小值） | -40C |
| 工作温度分类 | Industrial |
| Dual Supply Voltage (Typ) | Not Required V |
| 电源要求 | Single |
| Dual Supply Voltage (Min) | Not Required V |
| 弧度硬化 | No |
| Dual Supply Voltage (Max) | Not Required V |
| 包装类型 | HTQFP EP |
| Ethernet Type | :IEEE 802.3u |
| Supply Voltage Min | :2.38V |
| Supply Voltage Max | :3.6V |
| Digital IC Case Style | :HTQFP |
| No. of Pins | :48 |
| IC Interface Type | :MII, Serial |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :100 |
| Line / Bus Driver / Receiver / Transceiver Type | :Ethernet Transceiver |
| No. of Channels | :1 |
| No. of Ports | :1 |
| 工作温度范围 | :-40°C to +85°C |
| 电源电流 | :10µA |
| Supply Voltage Range | :2.38V to 3.6V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0001 |
| Tariff No. | 85423190 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | HTQFP (PHP) | 48 |
| Device Marking | View |
| Package QTY | Carrier | 250 | JEDEC TRAY (5+1) |
| TI Design | Y |
| New Flag | |
| Functional Diagram | fbd_slls931b.gif |
| HiRel | |
| Package Group | HTQFP |
| Reference Design | Y |
| 接口 | MII |
| 功能 | PHY |
| 数据传输率 | 10/100 |
| Datasheet | SLLS931B |
| Port Count | Single |
| LED | 3 |
| 特殊功能 | Cable Diagnostics |
| Rating | Catalog |
| JTAG11491 | Yes |
| SupplyVoltage | 3.3 |
| 电缆长度 | 200 |
| RESOURCE TYPE | LINK |
|---|---|
