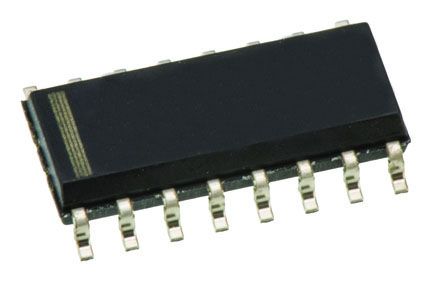

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 16SOIC |
| 数据传输拓扑 | Point-to-Point |
| 接口标准 | EIA/TIA-232-F|V.28 |
| 数据传输速率 | 120 Kbps |
| 功能 | Line Transmitter/Receiver |
| 收发器数量 | 1 |
| 变送器数 | 2 |
| 发射信号类型 | Single-Ended |
| 变送器通讯方式 | RS-232 |
| 典型的单电源电压 | 5 V |
| 标准包装 | Rail / Tube |
| 典型的单电源电压 | 5 |
| 安装 | Surface Mount |
| 包装宽度 | 4(Max) |
| PCB | 16 |
| 筛选等级 | Commercial |
| 欧盟RoHS指令 | Compliant |
| 最大电源电流 | 10 |
| 电源类型 | Single |
| 最低工作温度 | 0 |
| 供应商封装形式 | SOIC |
| 标准包装名称 | SOIC |
| 接收机信号类型 | Single-Ended |
| 最高工作温度 | 70 |
| 最大单电源电压 | 5.5 |
| 接收器数 | 2 |
| 包装长度 | 10(Max) |
| 引脚数 | 16 |
| 最小单电源电压 | 4.5 |
| 包装高度 | 1.5(Max) |
| 封装 | Tube |
| 铅形状 | Gull-wing |
| 协议 | RS232 |
| 安装类型 | Surface Mount |
| 复式 | Full |
| 的驱动器/接收器数 | 2/2 |
| 供应商设备封装 | 16-SOIC N |
| 接收器滞后 | 500mV |
| 工作温度 | 0°C ~ 70°C |
| 电压 - 电源 | 4.5 V ~ 5.5 V |
| 类型 | Transceiver |
| 其他名称 | 296-6936-5 |
| 封装/外壳 | 16-SOIC (0.154", 3.90mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 9.9 x 3.91 x 1.58mm |
| 身高 | 1.58mm |
| 长度 | 9.9mm |
| 最高工作温度 | +70 °C |
| 最低工作温度 | 0 °C |
| 每个线路驱动器数量 | 1 |
| 每行接收器数 | 1 |
| 包装类型 | SOIC |
| 宽度 | 3.91mm |
| 接口电路标准1 | EIA/TIA-232-F/V.28 |
| 工作温度范围 | 0C to 70C |
| 工作温度分类 | Commercial |
| Dual Supply Voltage (Typ) | Not Required V |
| 电源要求 | Single |
| 电源电流 | 10 mA |
| Dual Supply Voltage (Min) | Not Required V |
| 弧度硬化 | No |
| 单电源电压（最小值） | 4.5 V |
| 单电源电压（最大值） | 5.5 V |
| 单电源电压（典型值） | 5 V |
| Dual Supply Voltage (Max) | Not Required V |
| 删除 | Compliant |
| 设备类型 | :Driver / Receiver |
| IC Interface Type | :RS232 |
| No. of Drivers | :2 |
| Supply Voltage Min | :4.5V |
| Supply Voltage Max | :5.5V |
| Driver Case Style | :SOIC |
| No. of Pins | :16 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Line / Bus Driver / Receiver / Transceiver Type | :RS-232 |
| Logic Case Style | :SOIC |
| 工作温度范围 | :0°C to +70°C |
| Supply Voltage Range | :4.5V to 5.5V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0001 |
| Tariff No. | 85411000 |
| 案例 | SO16 |
| Transmission rate | 120kbps |
| Receivers amount | 2 |
| Transmitters quantity | 2 |
| Gross weight | 0.55 g |
| 电源电压 | 5V DC |
| Multiplicity | 1 |
| 接口 | RS232 |
| Integrated circuit type | line transmitter-receiver |
| Collective package [pcs] | 200 |
| spg | 200 |
| Status | ACTIVE |
| Temp (oC) | 0 to 70 |
| Package | Pins | SOIC (D) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 40 | TUBE |
| IEC-61000-4-2 SUPPORT | |
| Functional Diagram | alt_slls047m.gif |
| Power Saving Feature | |
| Receivers Per Package | 2 |
| 逻辑电压 | 5 |
| HiRel | |
| Package Group | PDIP SO SOIC |
| Reference Design | |
| Main Supply Voltage | 5 |
| ICC | 10 |
| Driver Supply Voltage | |
| Drivers Per Package | 2 |
| Datasheet | SLLS047M |
| Rating | Catalog |
| TI Design | |
| ESD HBM | 2 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
