Kingstate

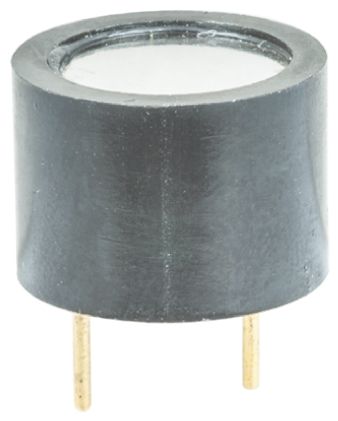

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 直径 | 14mm |
| 外形尺寸 | 14 x 10mm |
| 光驱类型 | Internal |
| 身高 | 10mm |
| 最大频率 | 5500Hz |
| 最高工作温度 | +85°C |
| 最大电源电压 | 16V dc |
| 最小频率 | 4500Hz |
| 最低工作温度 | -30°C |
| 最低电源电压 | 9V dc |
| 安装类型 | Panel Mount |
| 声级比 | 80dB |
| 电源电流 | 35mA |
| 语气类型 | Continuous |
| Transducer Function | :Piezo Audio |
| SVHC | :No SVHC (20-Jun-2013) |
| 电流消耗 | :35mA |
| 额定电流 | :35mA |
| External Diameter | :14mm |
| External Length / Height | :9.5mm |
| 固定中心 | :7.6mm |
| 频率 | :5kHz |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-30°C |
| 引脚直径 | :0.8mm |
| Sound Level Distance | :30cm |
| Sound Level SPL | :80dB |
| 电源电压 | :12V |
| Supply Voltage DC Max | :16V |
| Supply Voltage DC Min | :9V |
| Supply Voltage Max | :16V |
| Supply Voltage Min | :9V |
| 重量 | :5g |
| Weight (kg) | 0.041 |
| Tariff No. | 85318095 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
