Kingstate
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 直径 | 22.5mm |
| 外形尺寸 | 22.5 Dia. x 3.2mm |
| 身高 | 3.2mm |
| 最高工作温度 | +85°C |
| 最低工作温度 | -30°C |
| 声级比 | 108dB |

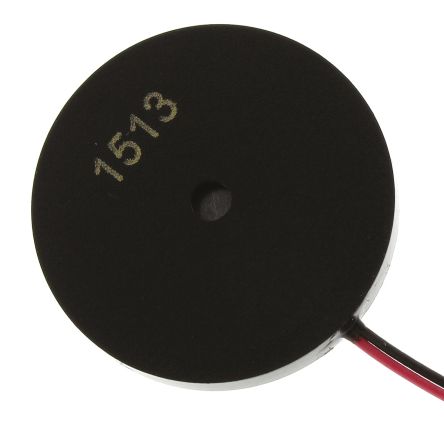

| Transducer Function | :Piezoelectric Telephone Receiver |
| Sound Level SPL | :108dB |
| External Diameter | :22.5mm |
| SVHC | :No SVHC (20-Jun-2013) |
| External Length / Height | :3.2mm |
| 阻抗 | :2kohm |
| 引线长度 | :100mm |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-30°C |
| 重量 | :1.1g |
| Weight (kg) | 0.0011 |
| Tariff No. | 85318095 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
